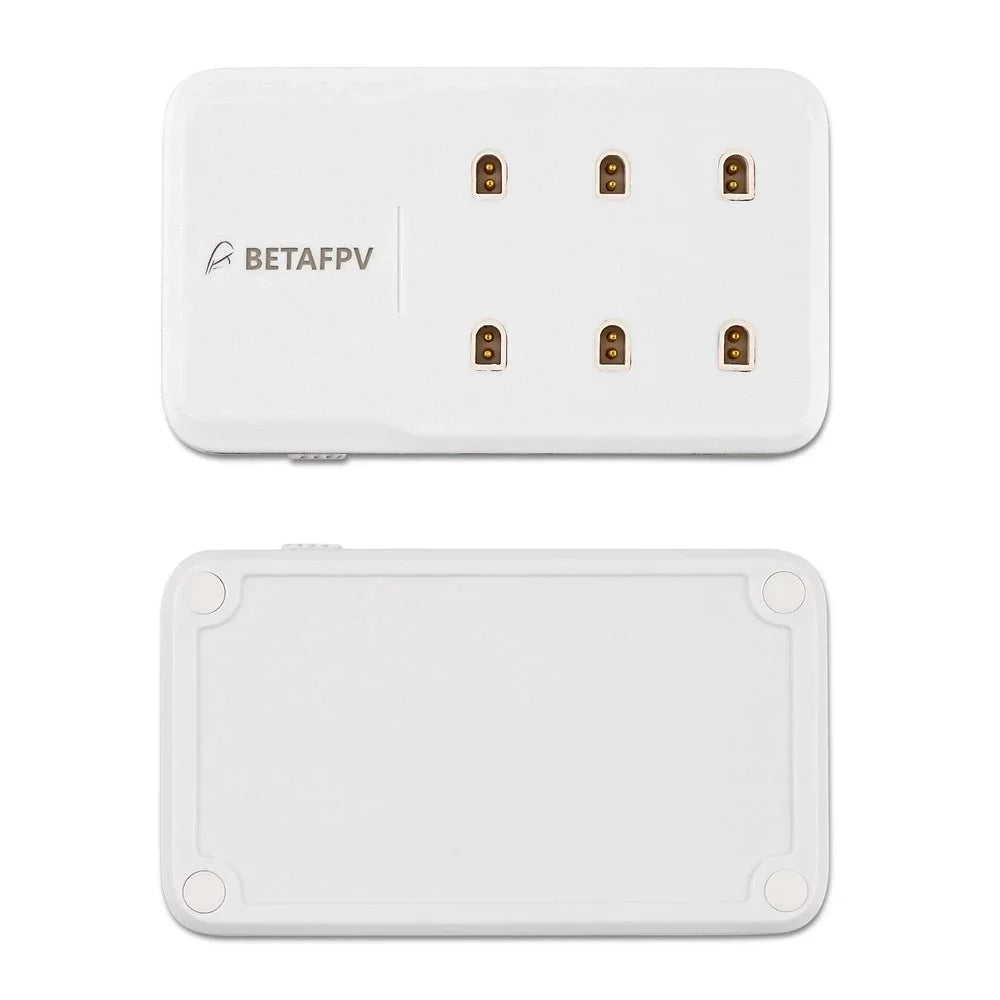

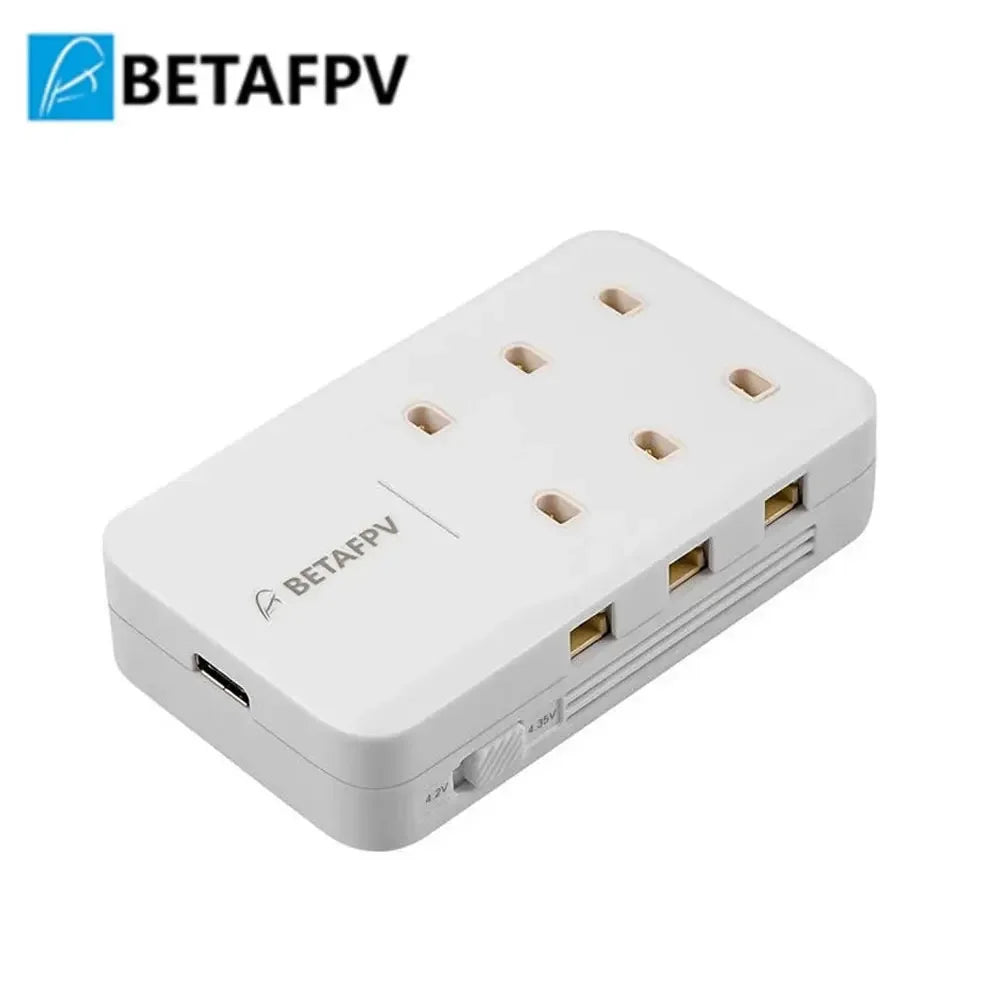

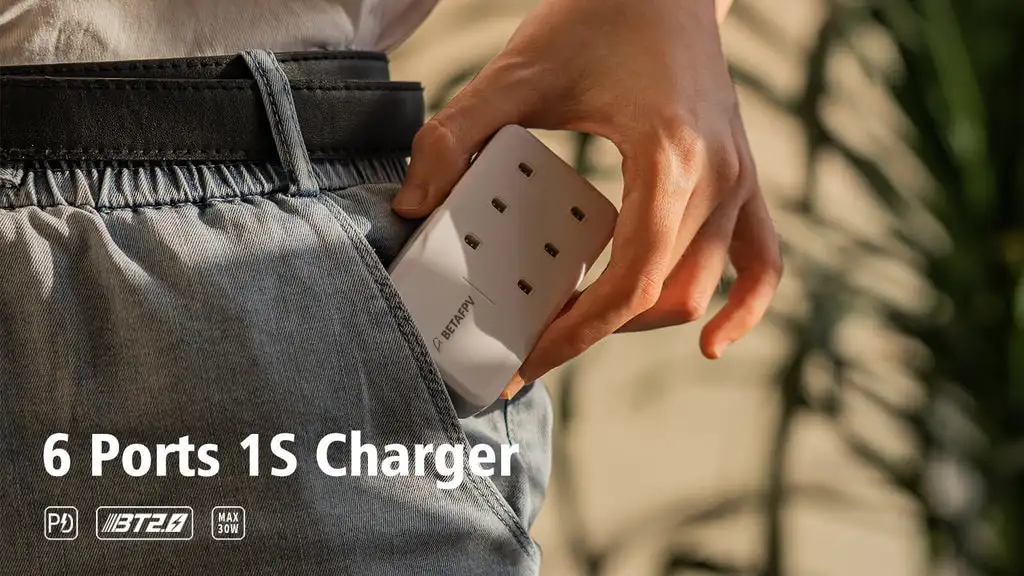

This new 6 Ports 1S battery charger supports PH2.0 and BT2.0 simultaneously. What's more, charging is faster when using a 30W adapter. Compact, fast charging, and portable, choosing a 1S battery charger that best suits your needs will no longer be difficult with this 6 Ports 1S charger and adapter.

Bullet Point

• With two types of BT2.0/PH2.0 battery ports, the charger supports charging both BT2.0 and PH2.0 batteries at the same time.

• Supporting multi-charging protocols including PD3.0/QC3.0/BC1.2, the charging current of each port can reach 1A, which makes charging faster.

• This portable30W Type-C power adapter offers fast and efficient charging at home or on the go.

• The power adapter is compatible with any USB‑C–enabled device, you can also pair it with other devices to take advantage of the fast-charging feature.

• European and American adapters are provided for your choice.

SPECIFICATION

• Item: 6 Ports 1S Battery Charger and Adapter

• Input Connector: Type-C

• Input Voltage Range: 5-12V

• Max Input Power: 30W

• Max Input Current: 2.5A

• Max Charge Current: 1A (single port)

• Supported Battery Connector: BT2.0 & PH2.0

• Charging Protocol: PD3.0/QC3.0 (5V/9V/12V) /BC1.2

• Battery Type: LiHV 4.35V

• Dimensions: 79*46*19mm

Note: The switch to 4.2V is changed to OFF in the new batch.

Support fast charging(This link does not include an adapter.)

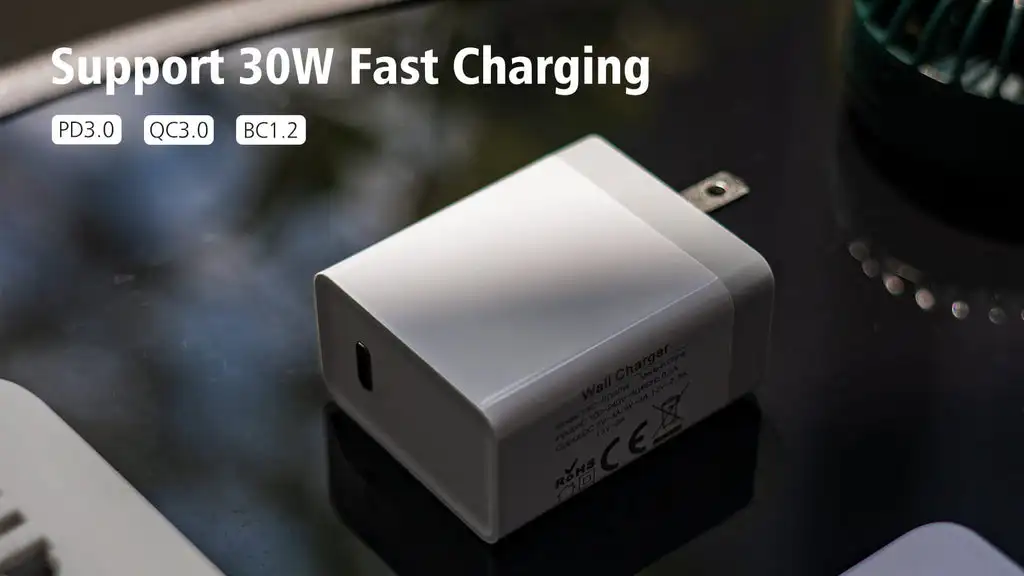

The 30W power adapter supports multi-charging protocols including PD3.0 / QC3.0 / BC1.2, equipped with 6 ports and a 1S battery charger with a maximum charging current of 1A, which makes charging faster. 6 BT2.0 300mAh 1S batteries can be fully charged in about 25 minutes.

Charging will take significantly longer when using adapters below 30W or standard 5V/2A adapters, as each charging port receives less than 1A current when all six ports are operating simultaneously. Note that some manufacturer-specific adapters (including certain Apple, Xiaomi, Vivo, and OPPO models) may not support PD fast charging.

Button Function

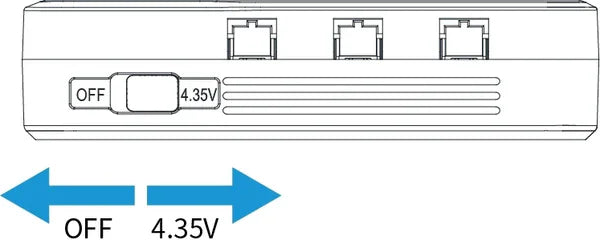

The button function is to switch the charging voltage: 4.35V.

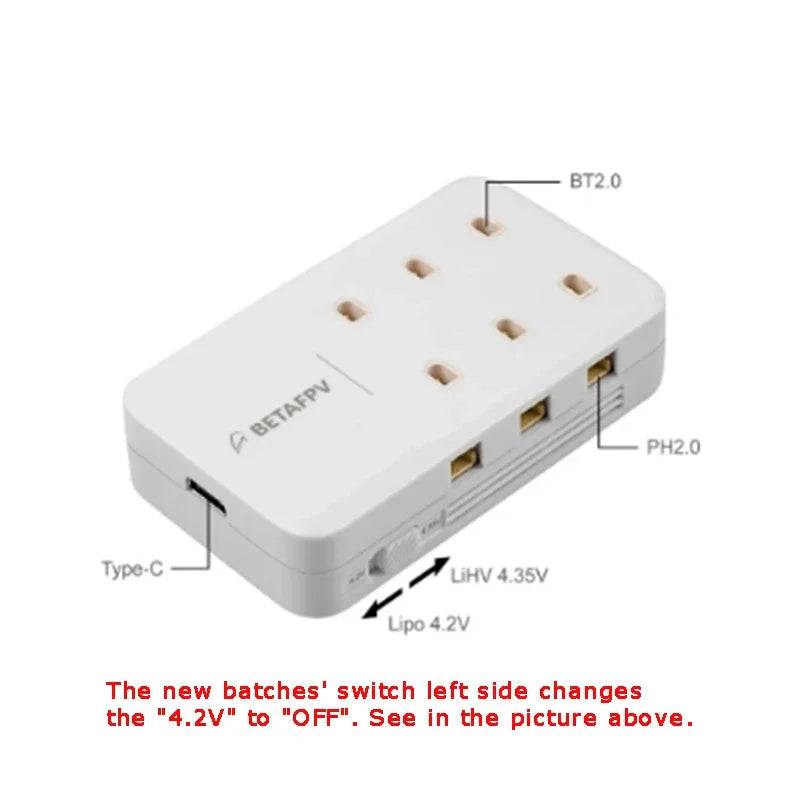

The new left side of the batch switch changes "4.2V" to "OFF". See the image above.

Indicator light status

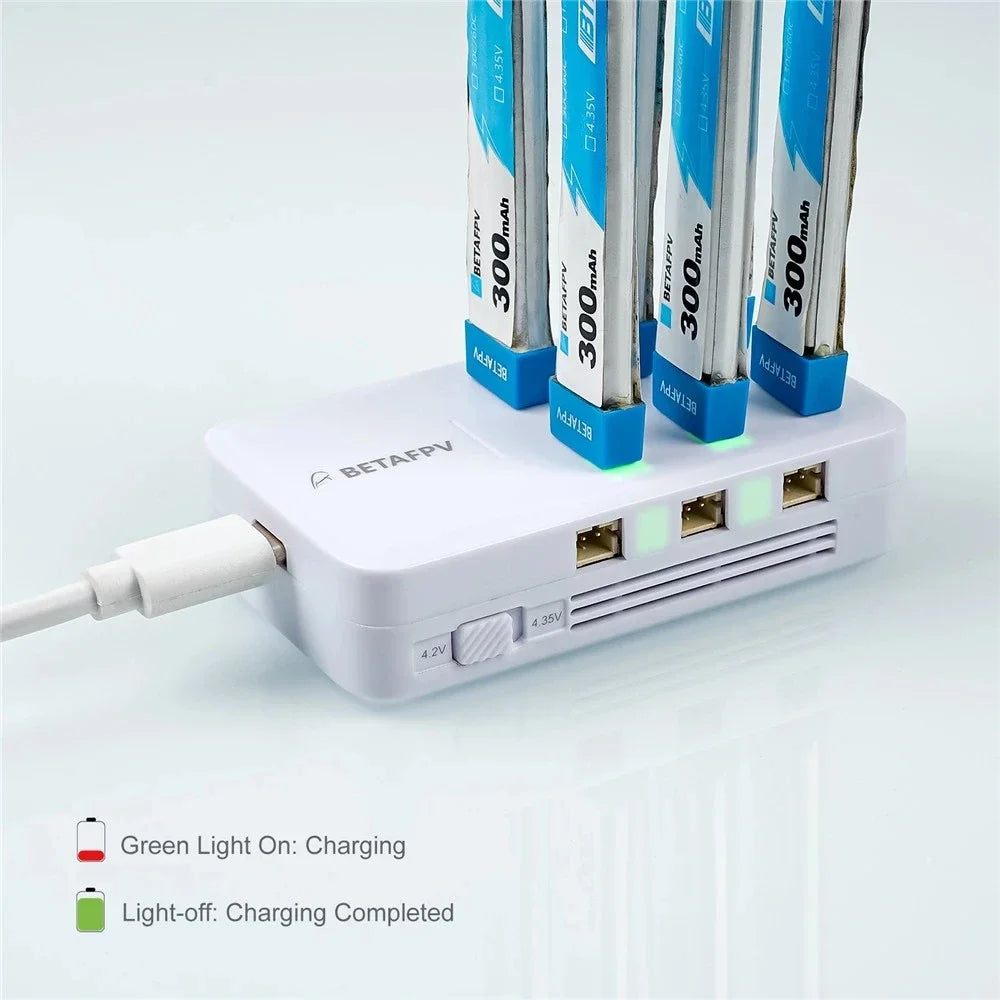

LED lights indicate the charging status of each battery. The green light indicates charging, the light turns off when fully charged.

Note: If the indicator light is off when there is no battery in the output port, this indicates that this line is faulty and cannot be used.

The orange LED light reveals the charging mode.
