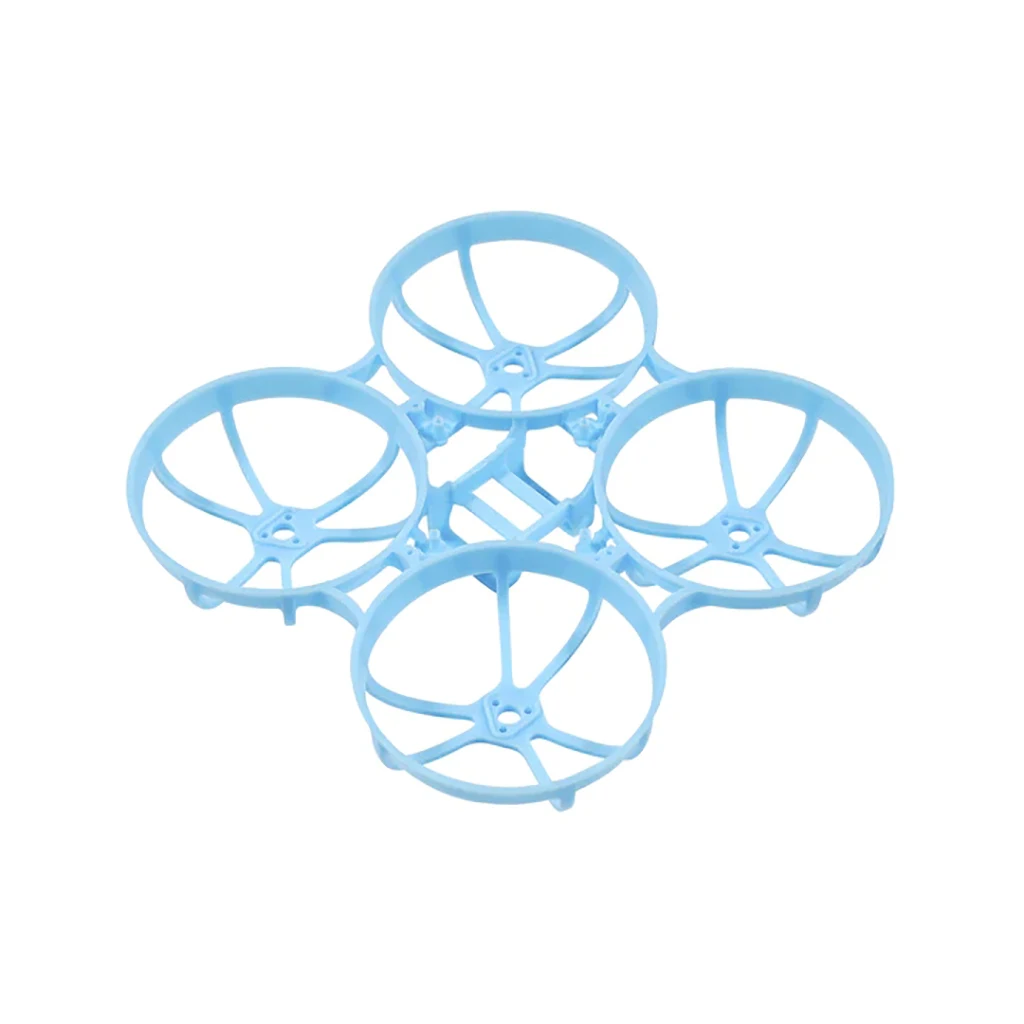

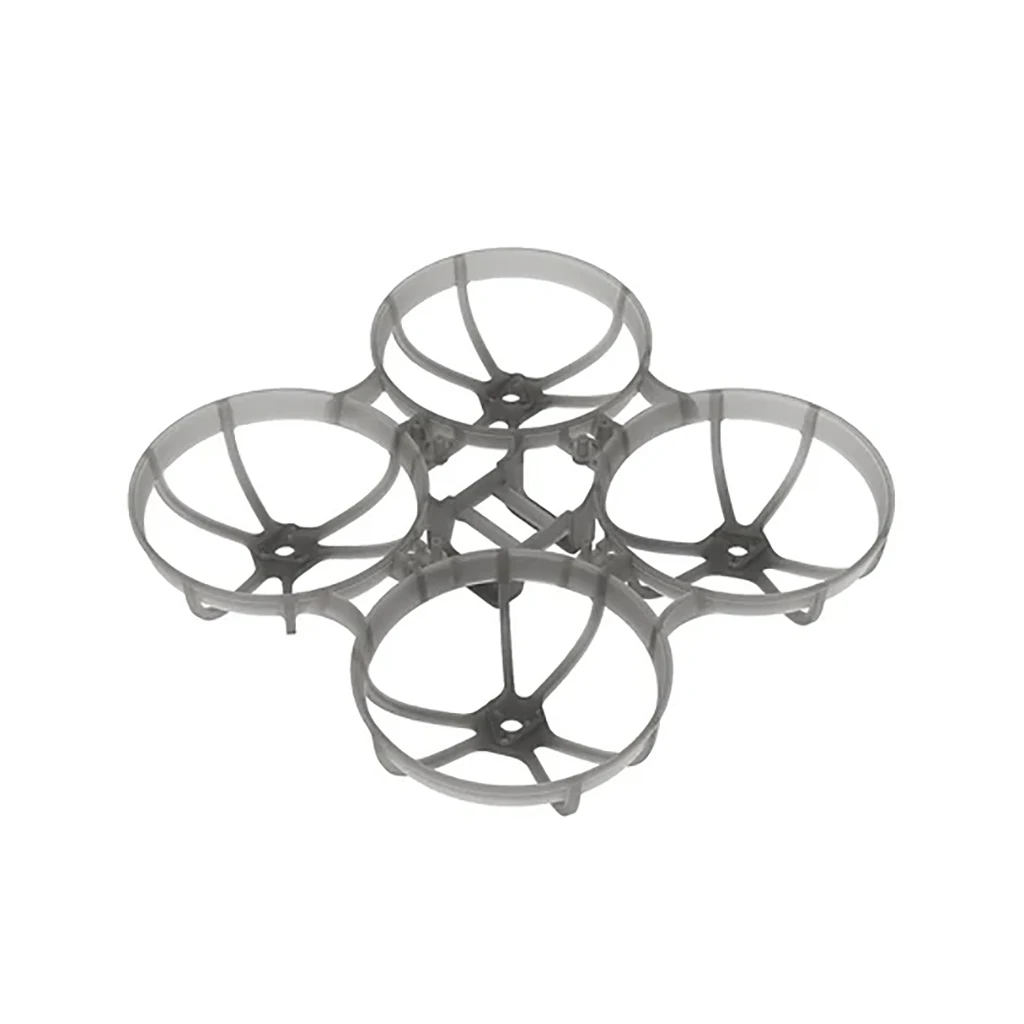

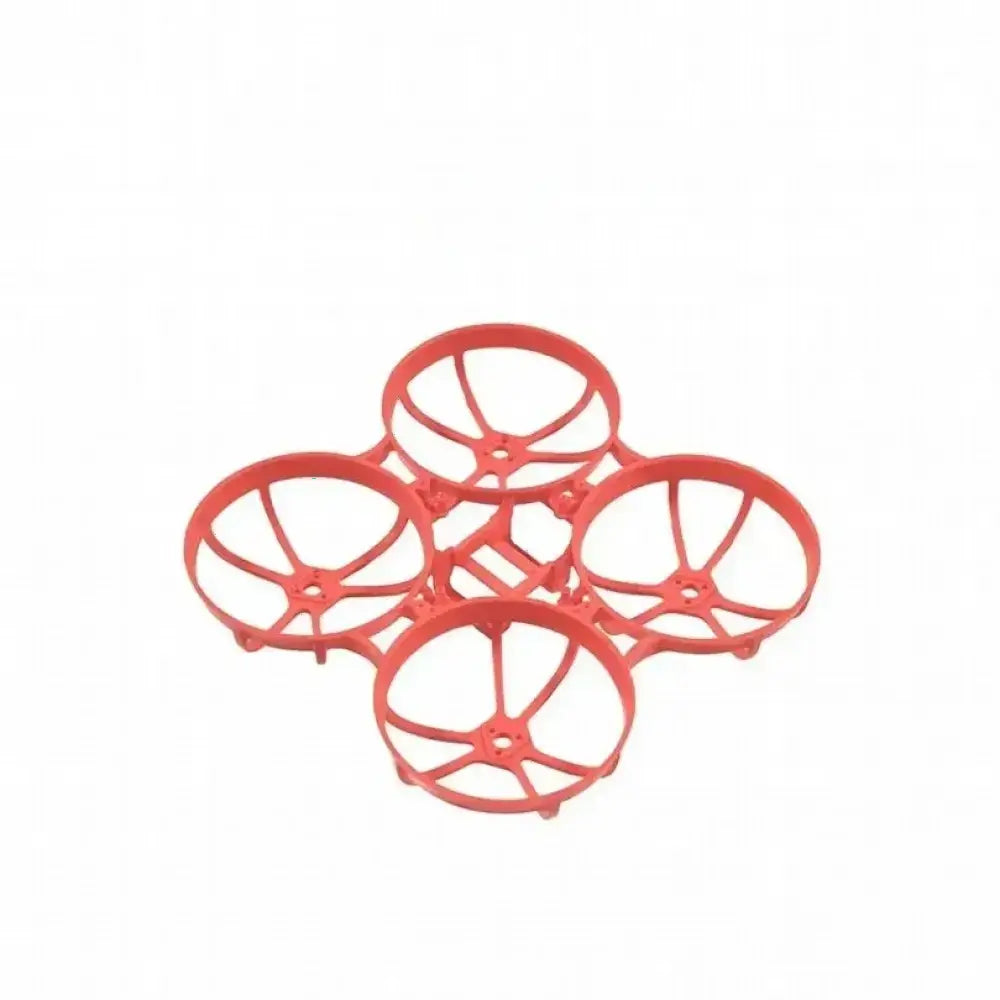

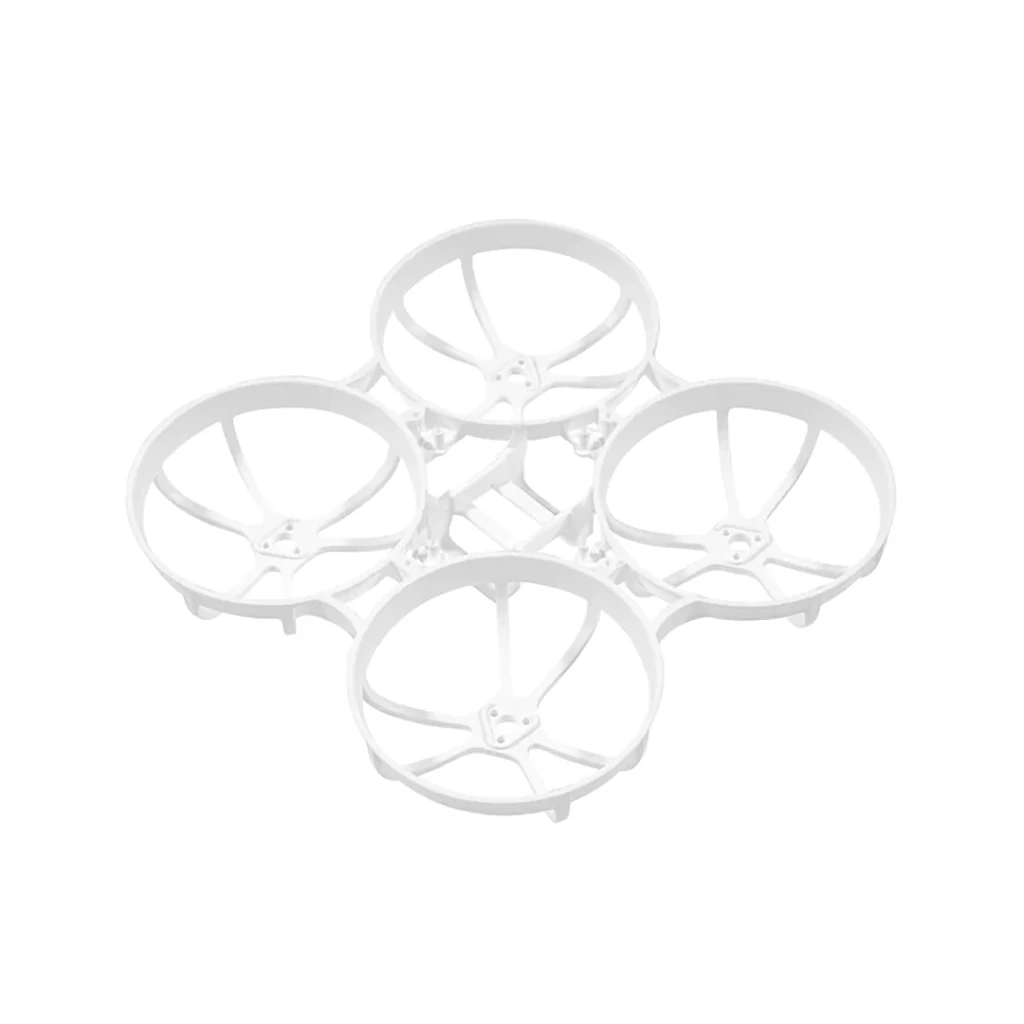

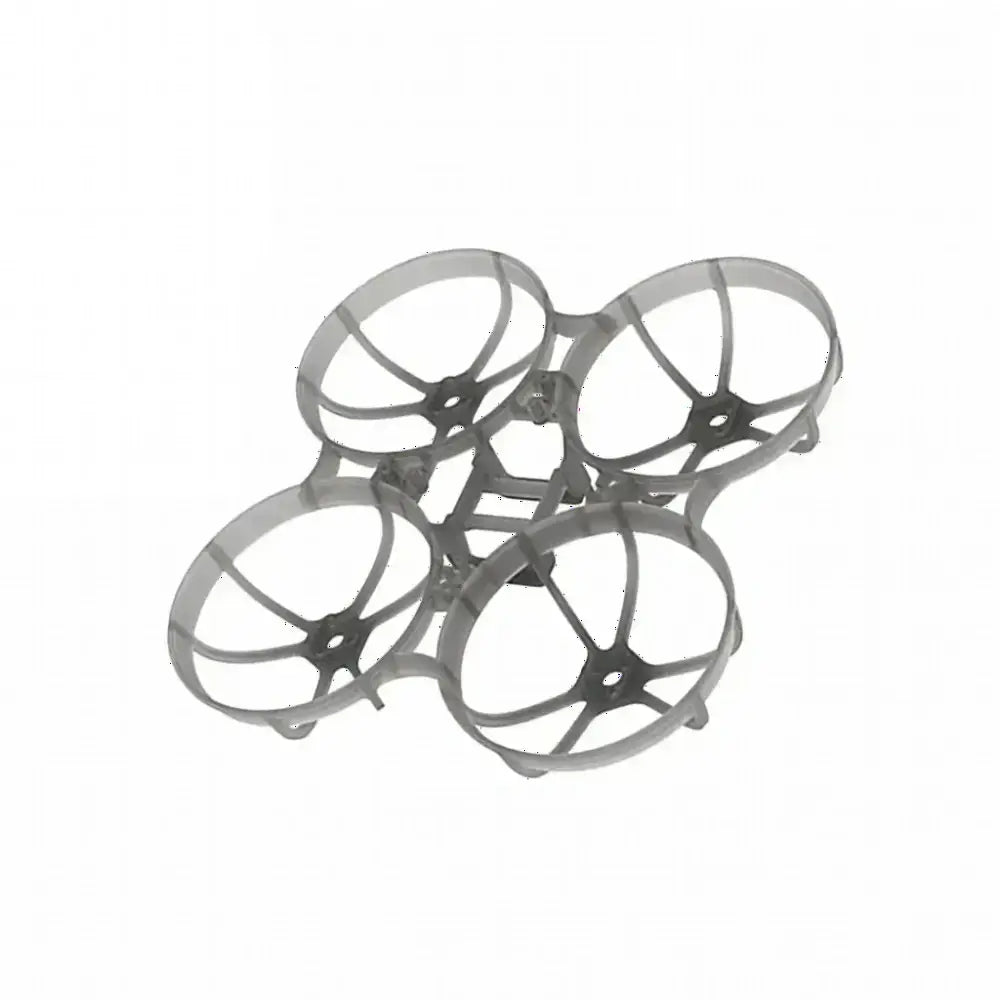

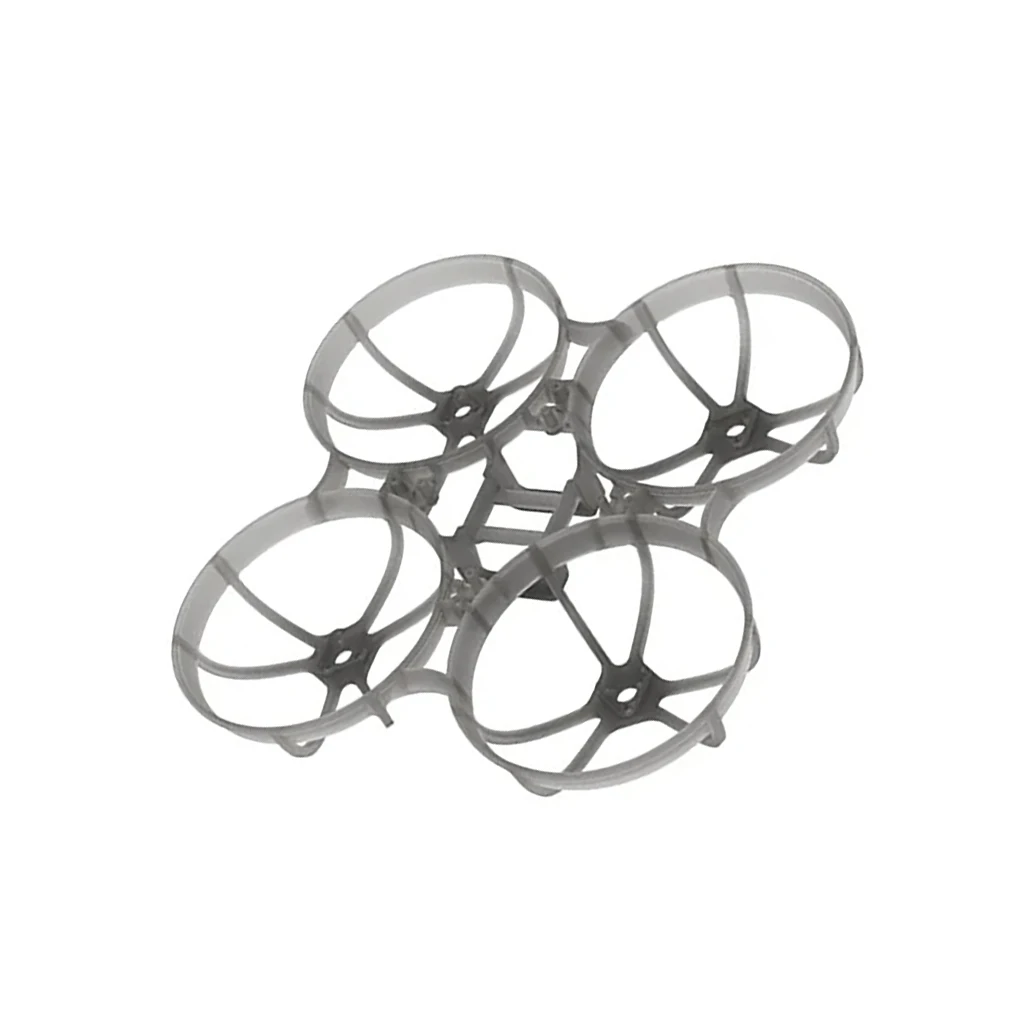

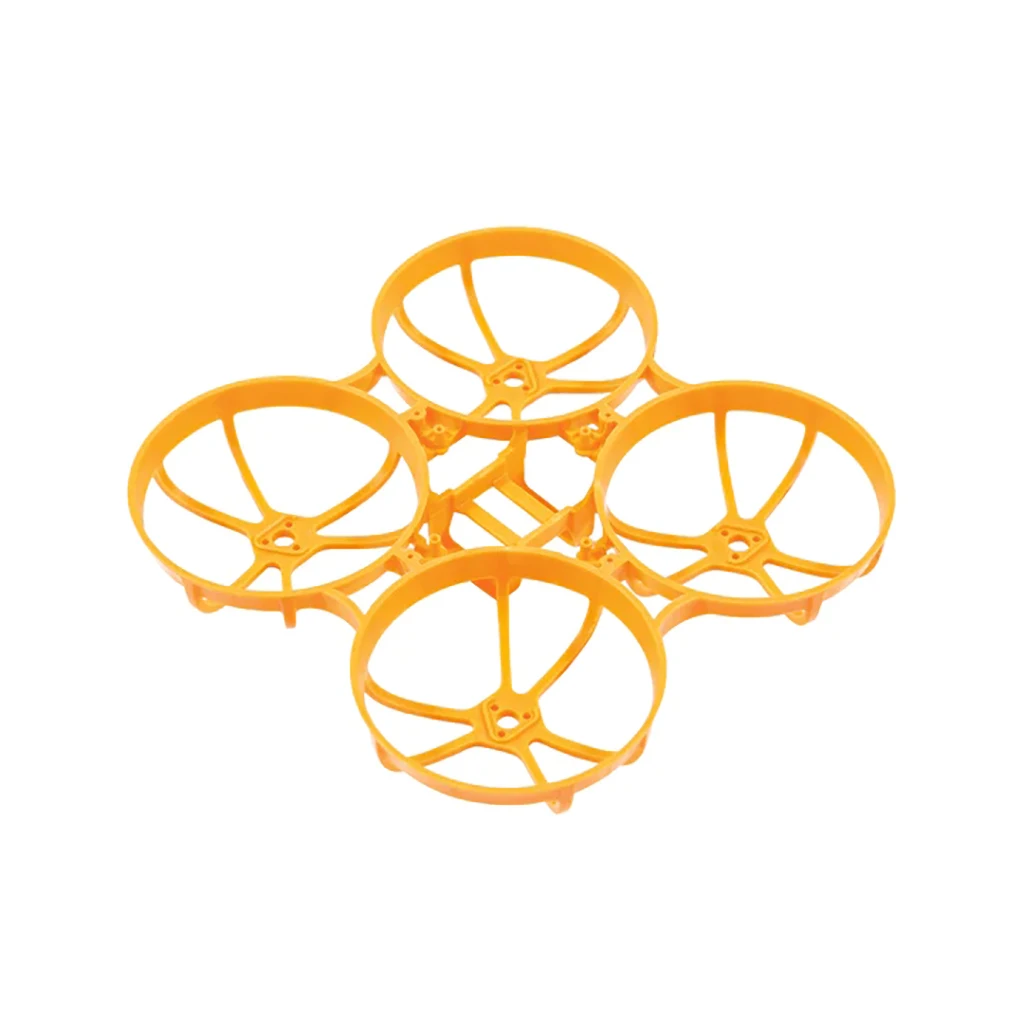

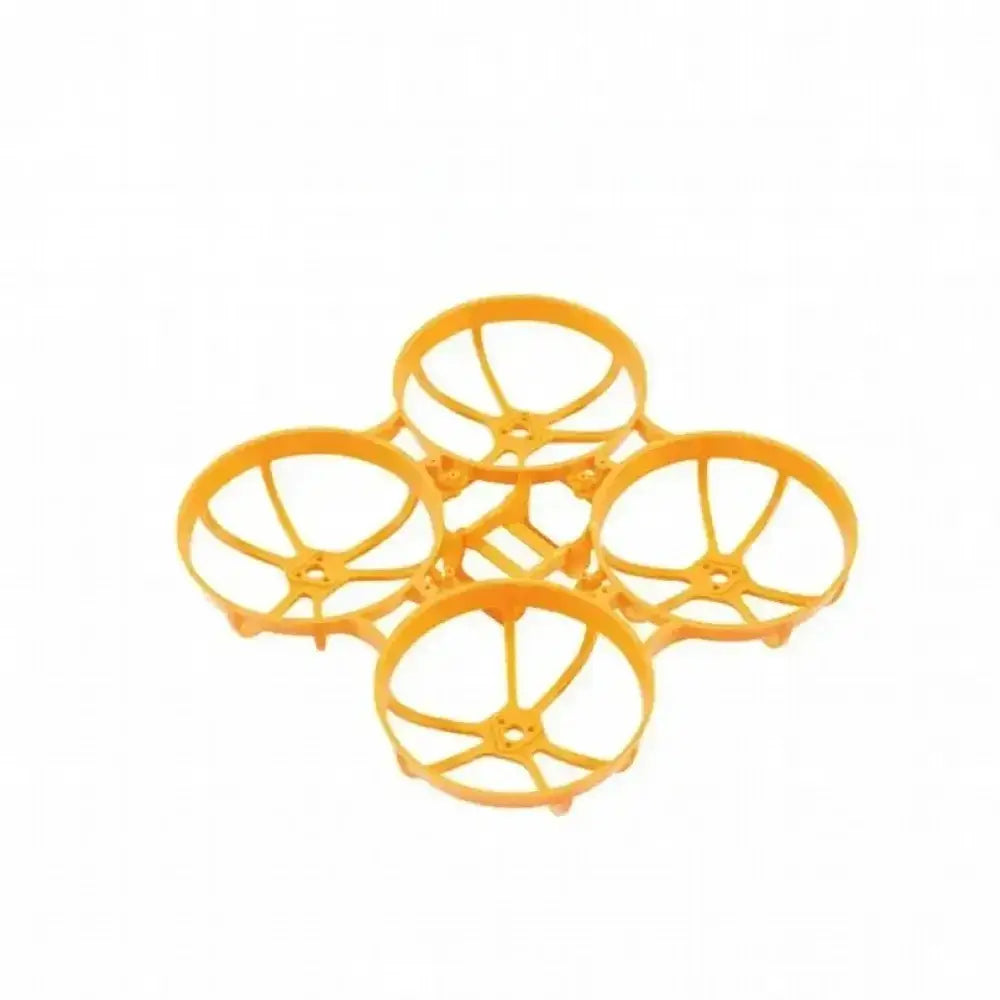

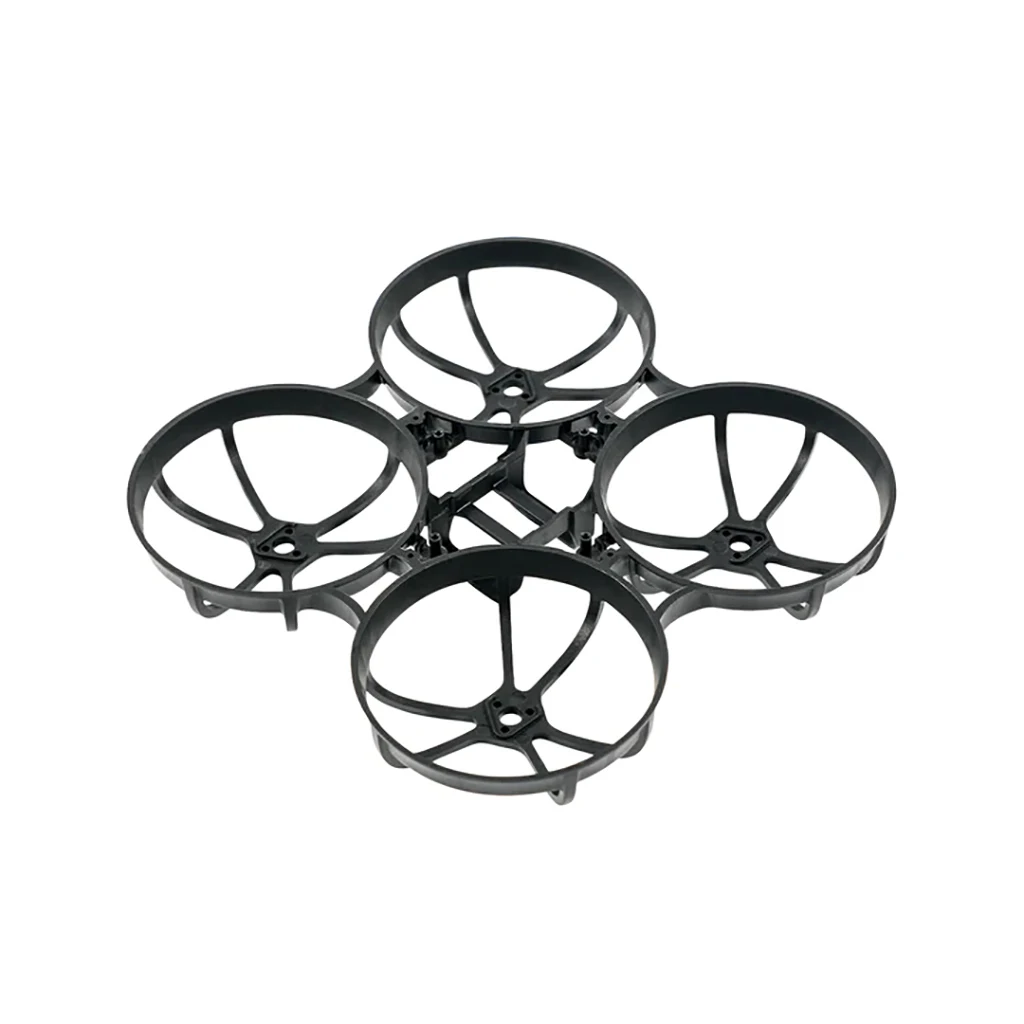

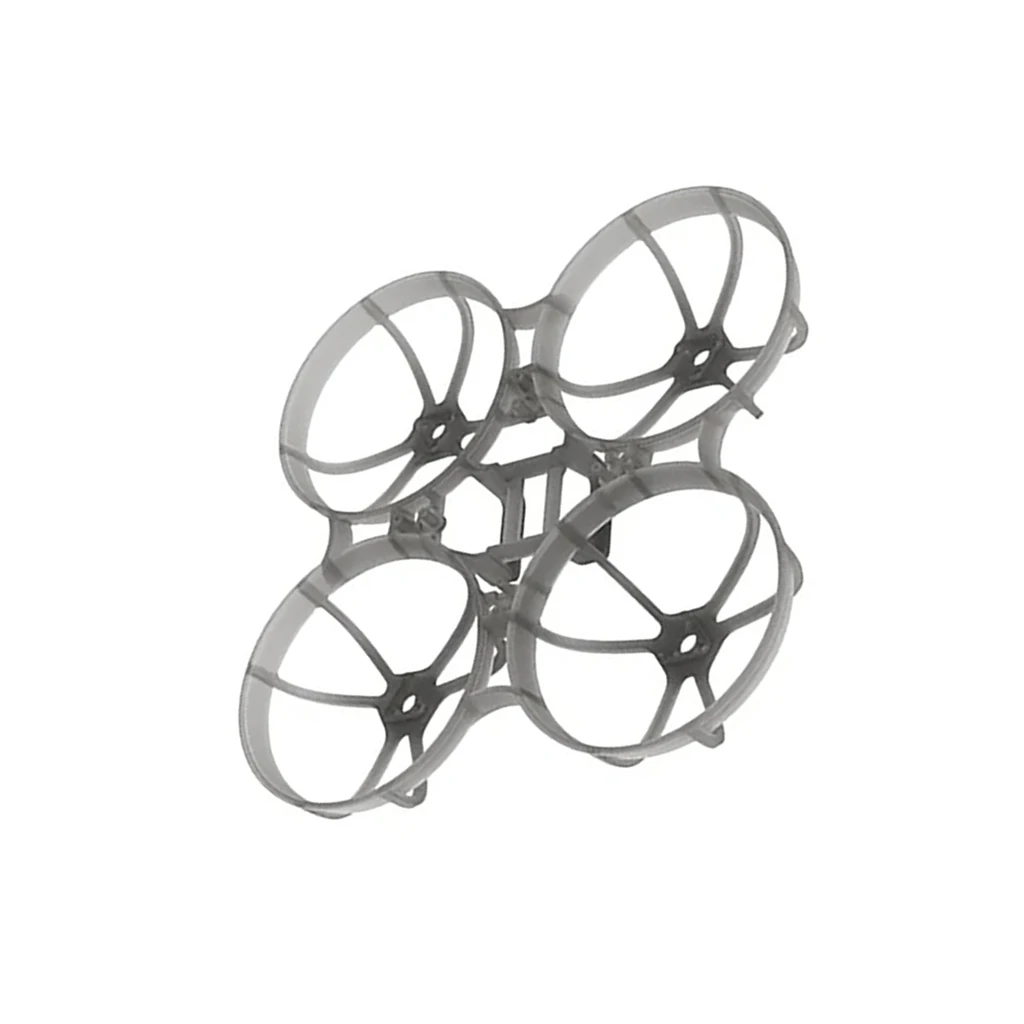

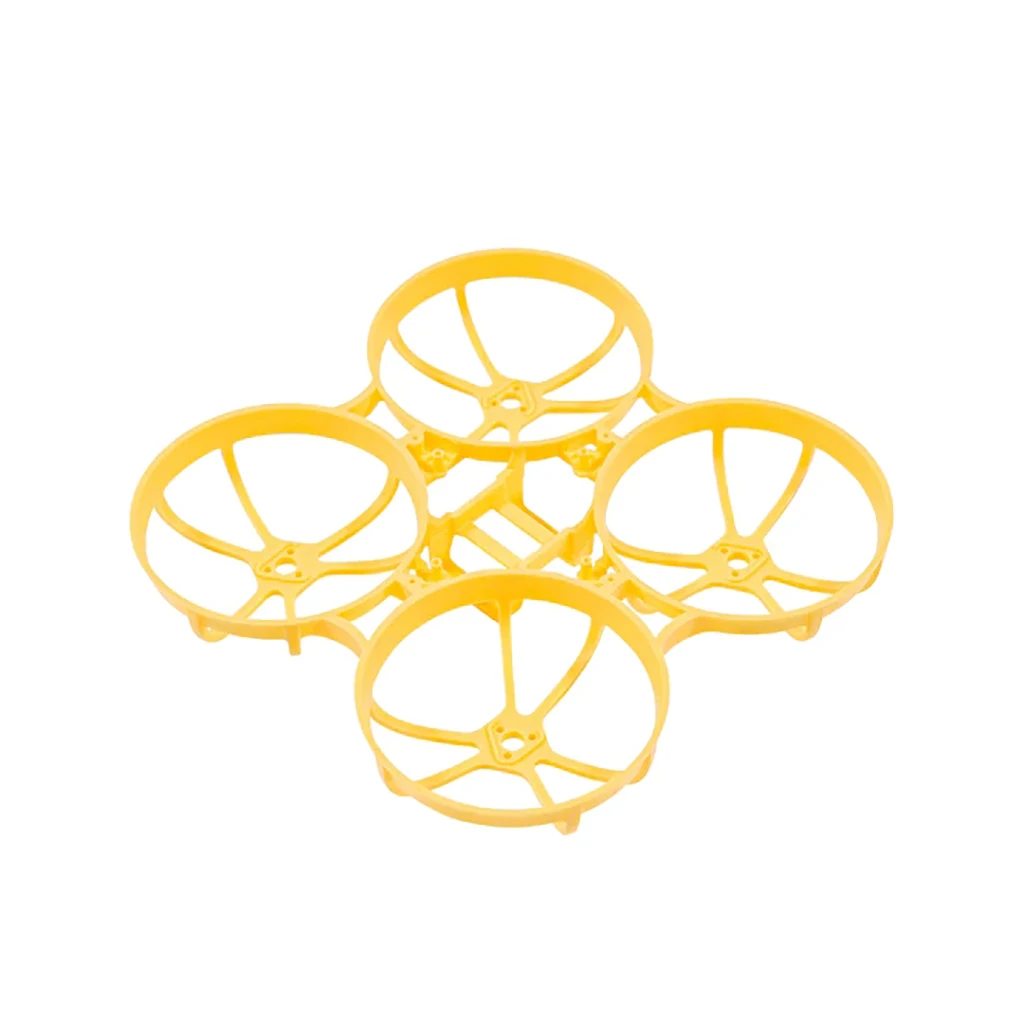

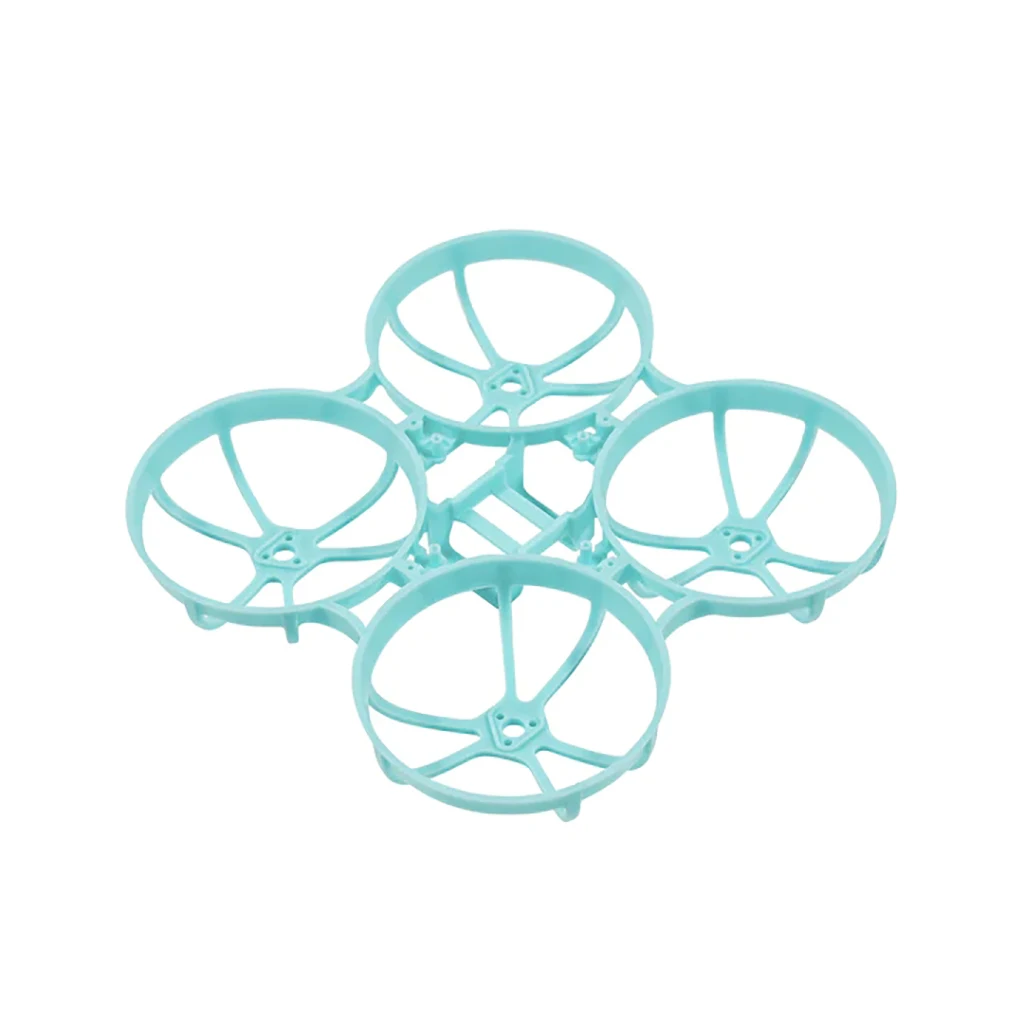

Designed for the largest 1S brushless quadcopter with seven colors to choose from. Featuring motor mounts for convenient installation and an improved battery slot, making a larger capacity 1S battery available. This really improves stability and makes flying easier. Set up with F4 1S 5A FC,1102and 45mm propellers, the Meteor75 Pro brushless Whoop frame offers excellent thrust-to-weight ratio performance suitable for the 1S HD whoop.

Note: On its way, stay tuned! The Meteor75 Pro brushless quadcopter with analog VTX or digital HD VTX is coming soon.

Bullet point

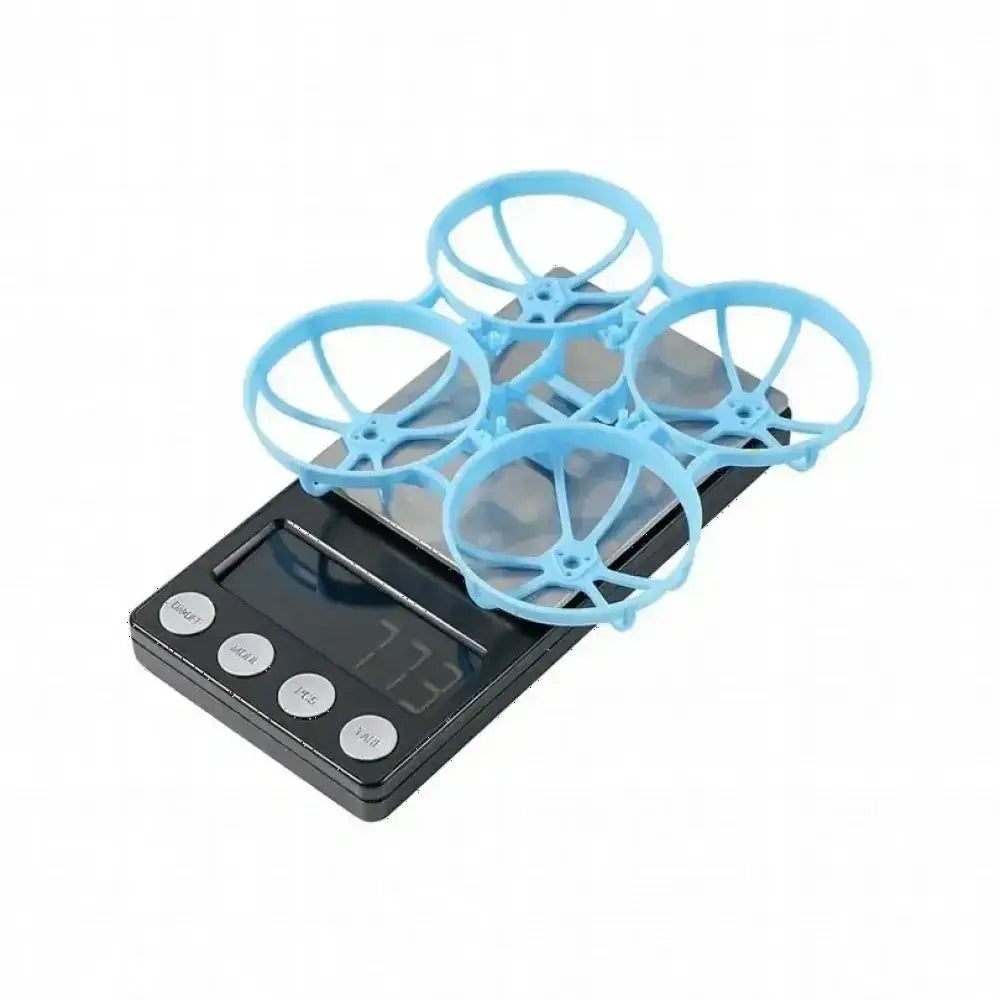

• The Meteor75 Pro brushless Whoop frame is durable enough with a light weight of 7.73g.

• The motor mount uses a triangular bilateral stretch structure, extremely strong for motor installation. Therefore, the flight is stable when the quadcopter is at high speed. I recommend motors with triangular mounts such as 1102, 0802SE brushless motors.


• The battery slot is larger. Pilots can use a larger 1S battery with more capacity. Recommended BETAFPV 450mAh 1S battery, BT2.0 550mAh 1S battery.

• The frame is perfect for 45mm propellers like Gemfan 2-blade/3-blade 45mm props. It greatly improves the thrust of the 1S whoop, especially when carrying digital HD VTX.

• The Meteor75 Pro frame is completely an upgrade choice for pilots flying the Meteor65, Meteor 65 Pro brushless quadcopter or Meteor 75 brushless quadcopter. The electronic parts are compatible such as the F4 1S 5A flight controller. Just buy 45mm props and recommend 1102 motors for more power.

Specification

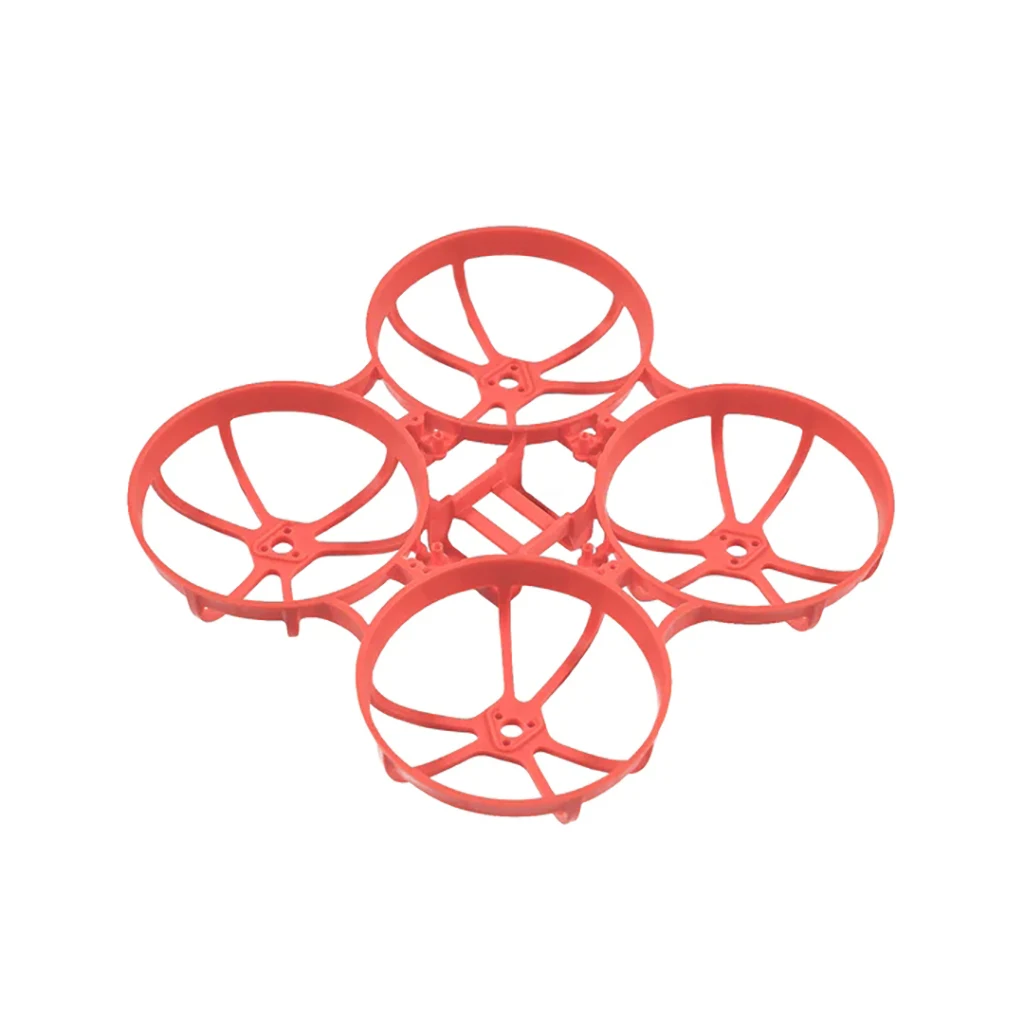

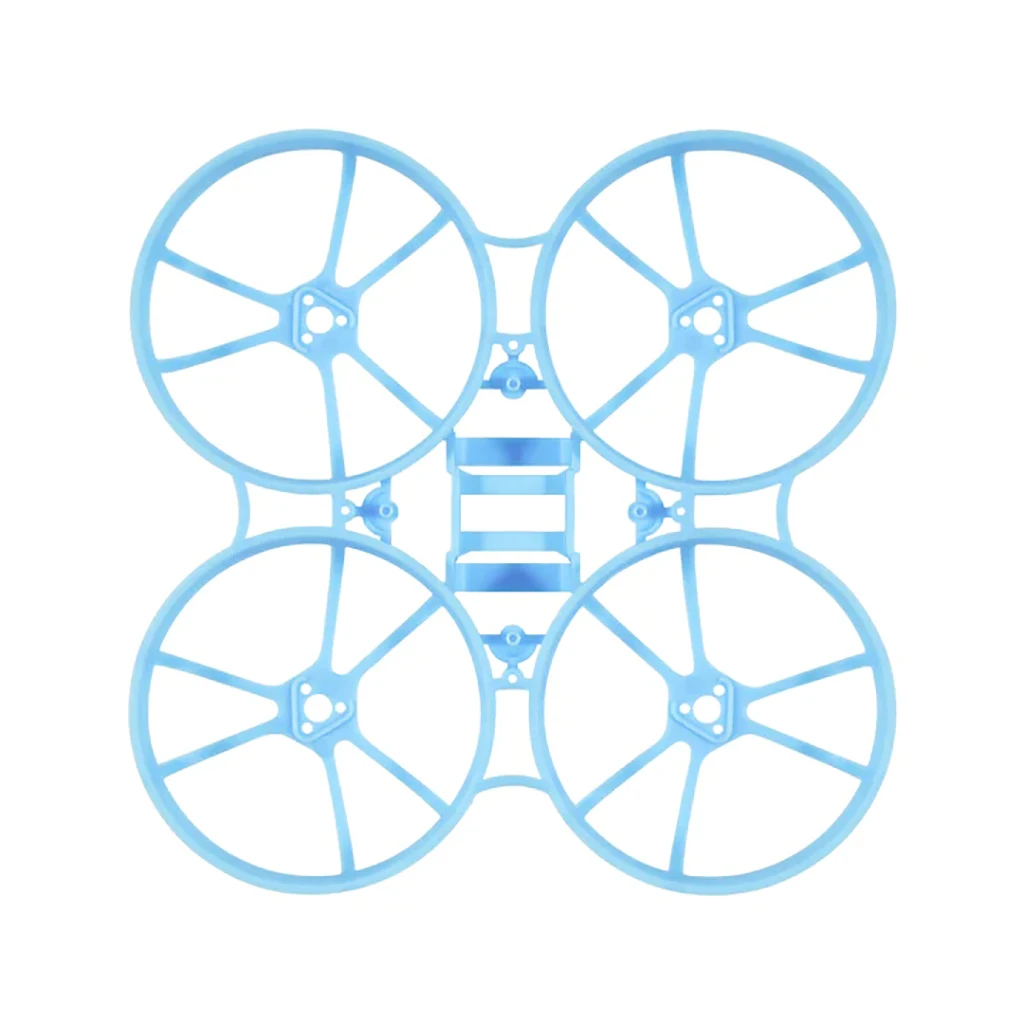

• Item: Meteor75 Pro brushless Whoop frame

• Material: PP

• Wheelbase: 80.8mm

• Weight: 7.73g

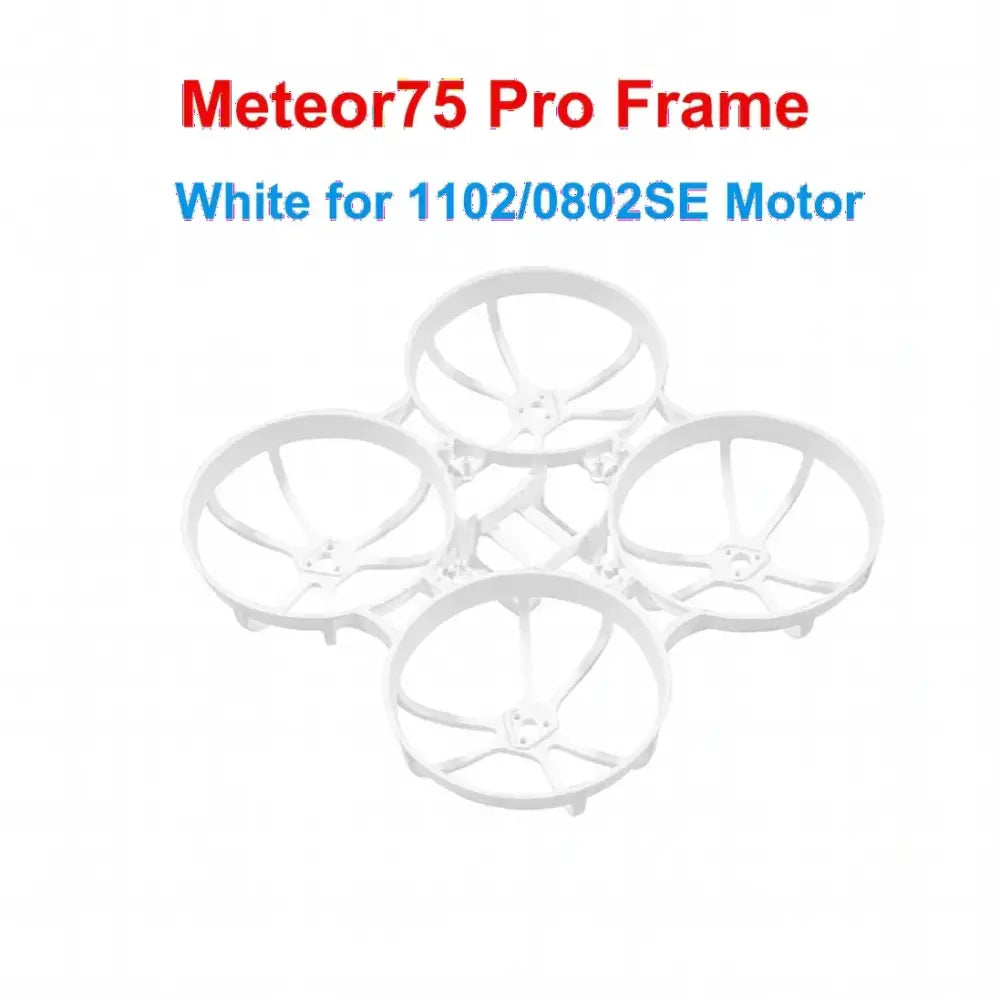

• Color: Black/Blue/Cyan/Yellow/Orange/White/Red

• Motor mounting hole: 3-M1.4-φ6.6mm, 1102,0802SE brushless motors

• Flight controller mounting hole: 26*26mm, F4 1S 5A flight controller

Largest 1S Drone Combo

The Meteor75 Pro frame with 2-blade or 3-blade 45mm props allows for very precise, agile and fantastic flight. It is compatible with parts from the 1S Meteor series whoops and is very easy to swap and upgrade. With 45mm props, it is the largest 1S power whoop drone nowadays. It can be perfect for HD VTX indoors.

From Meteor75 to Pro

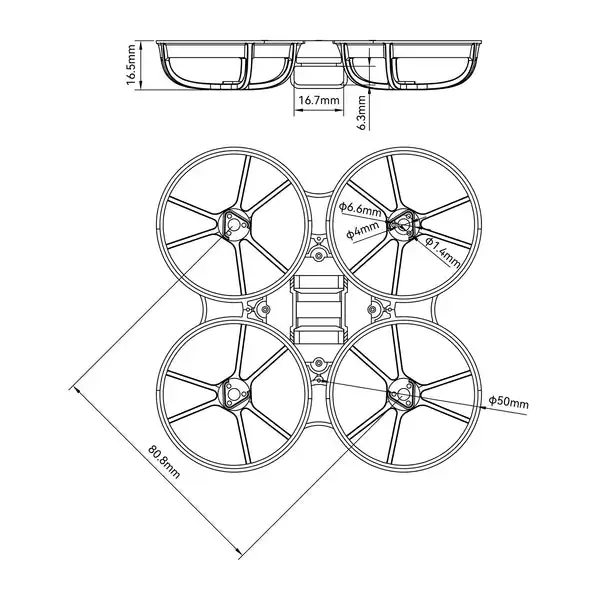

The Meteor75 Pro frame is larger than the classic Meteor75. It is suitable for 45mm propellers, which makes the Meteor75 Pro the largest 1S power whoop currently. The motor mount uses a triangular bilateral stretch structure, providing pilots with a more durable and smoother flying experience.

The battery slot is improved for a wider size of 16.7mm. The Meteor75 Pro frame supports a 450mAh, 550mAh 1S battery. It is recommended to use the BT2.0 450mAh 1S battery, BT2.0 550mAh 1S battery and other brand batteries that can fit in the slot.

Recommended parts

• Propellers: 2-blade/3-blade 45mm props

• Motors: 1102 brushless motors, 0802SE brushless motors

• Batteries: BT2.0 450mAh 1S battery, BT2.0 550mAh 1S battery (4 pcs).


• Canopy: BETAFPV Micro canopy, Micro canopy for HD camera

• Screws: Meteor series motor mounting screw pack (40 pcs).

• FC: F4 1S 5A FC

Package

1 * Meteor75 Pro brushless Whoop frame

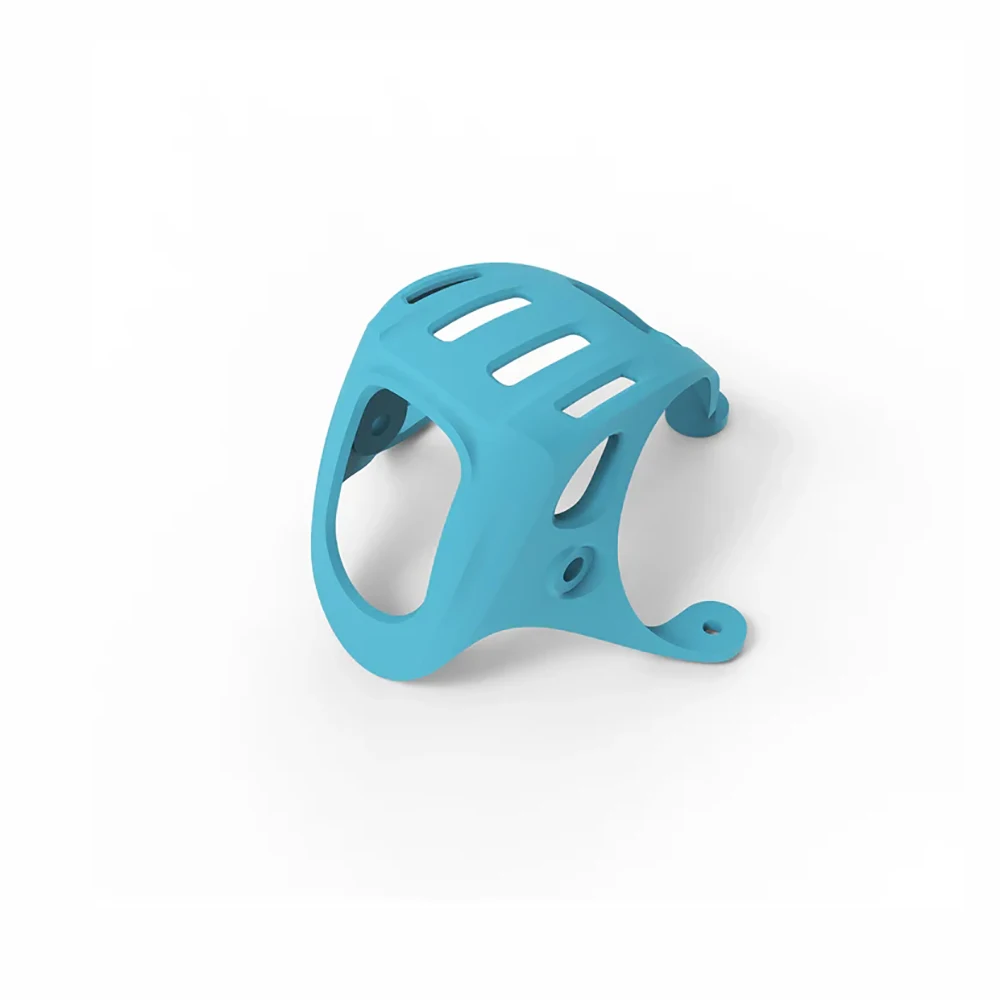

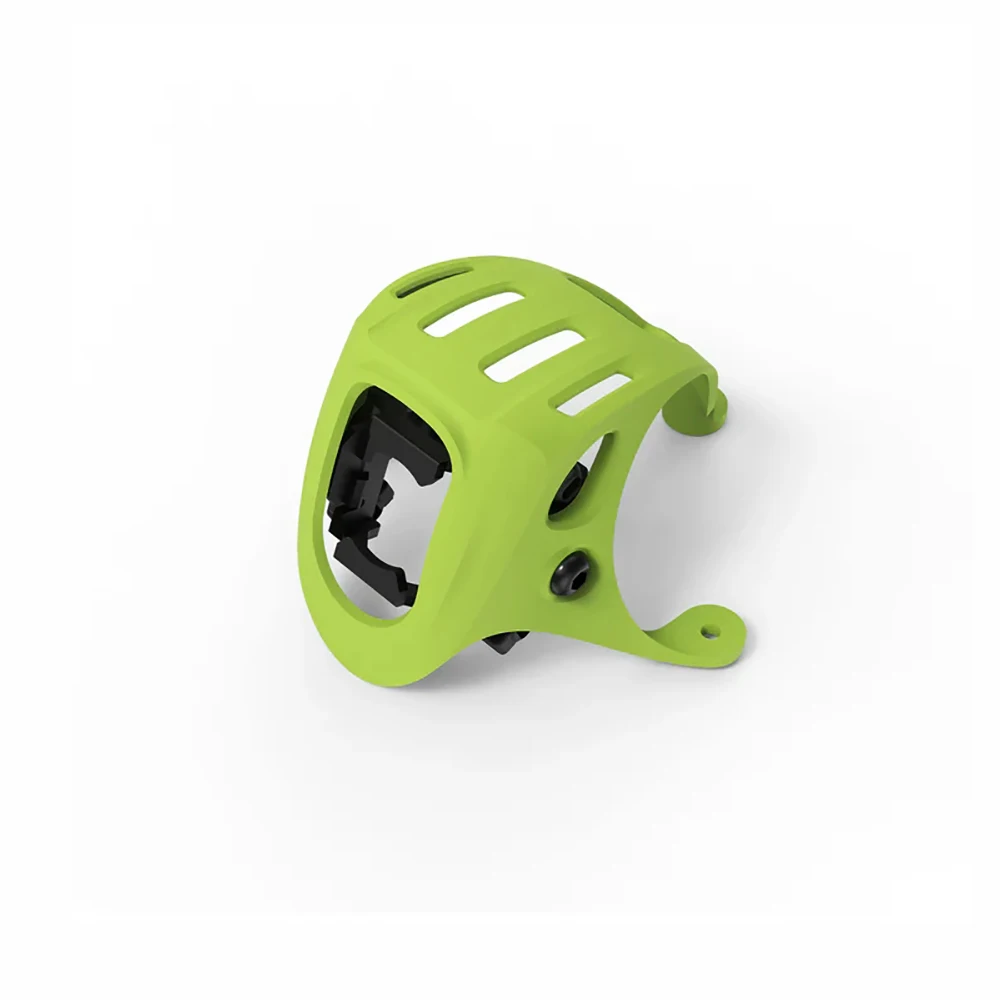

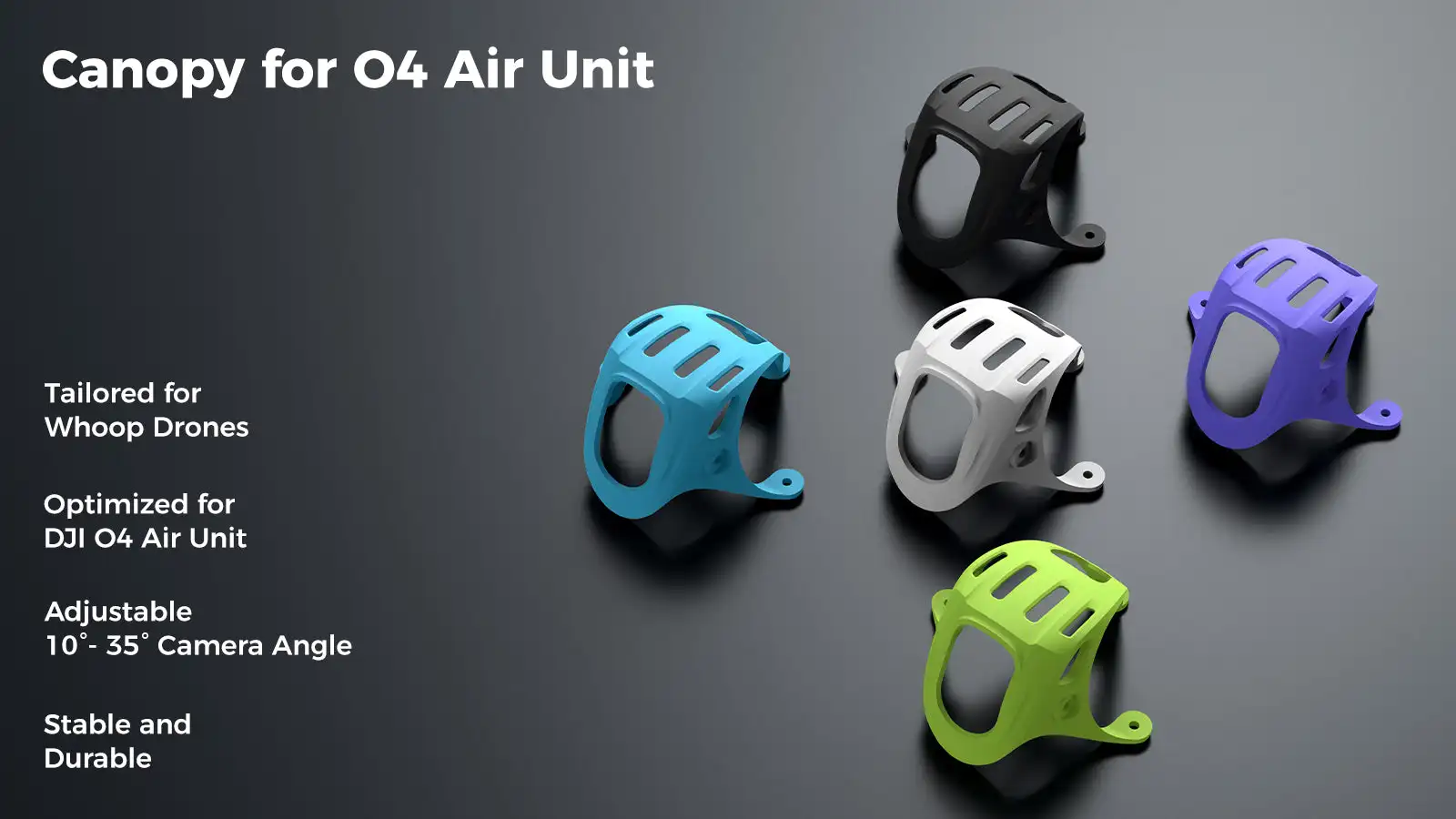

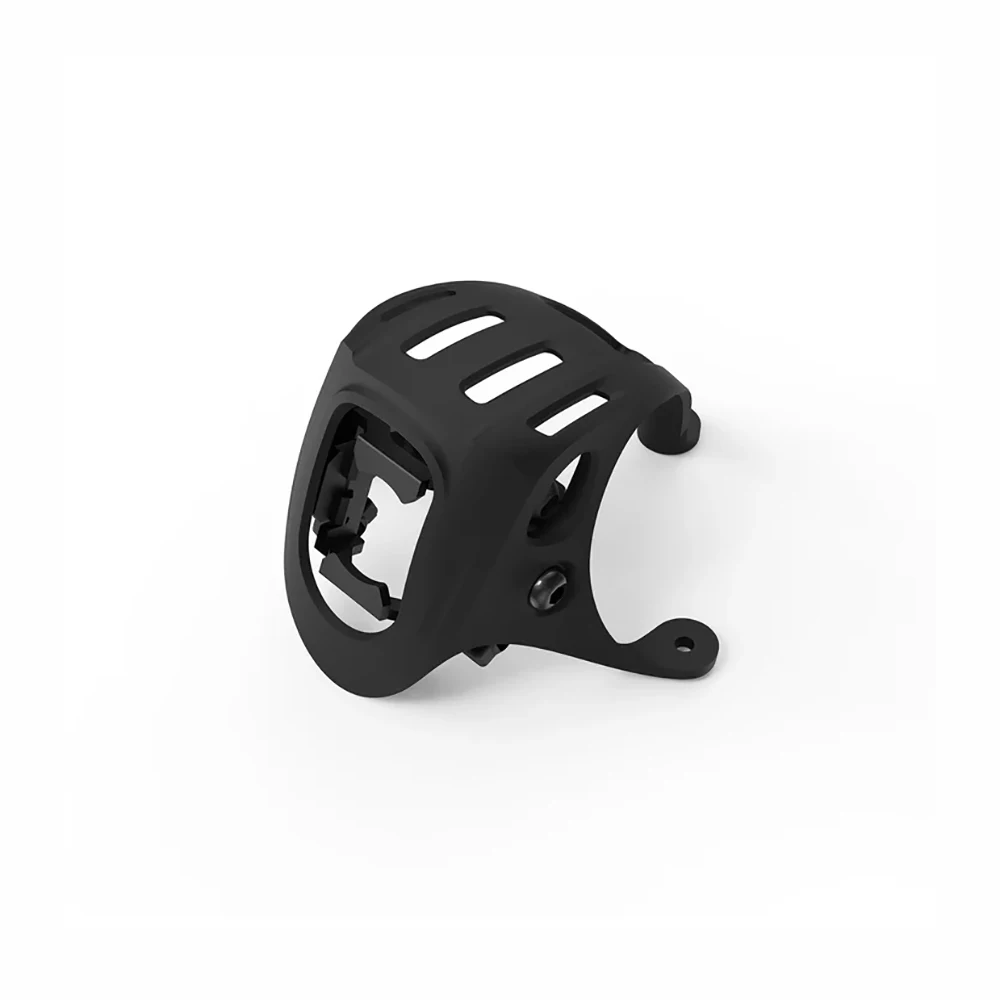

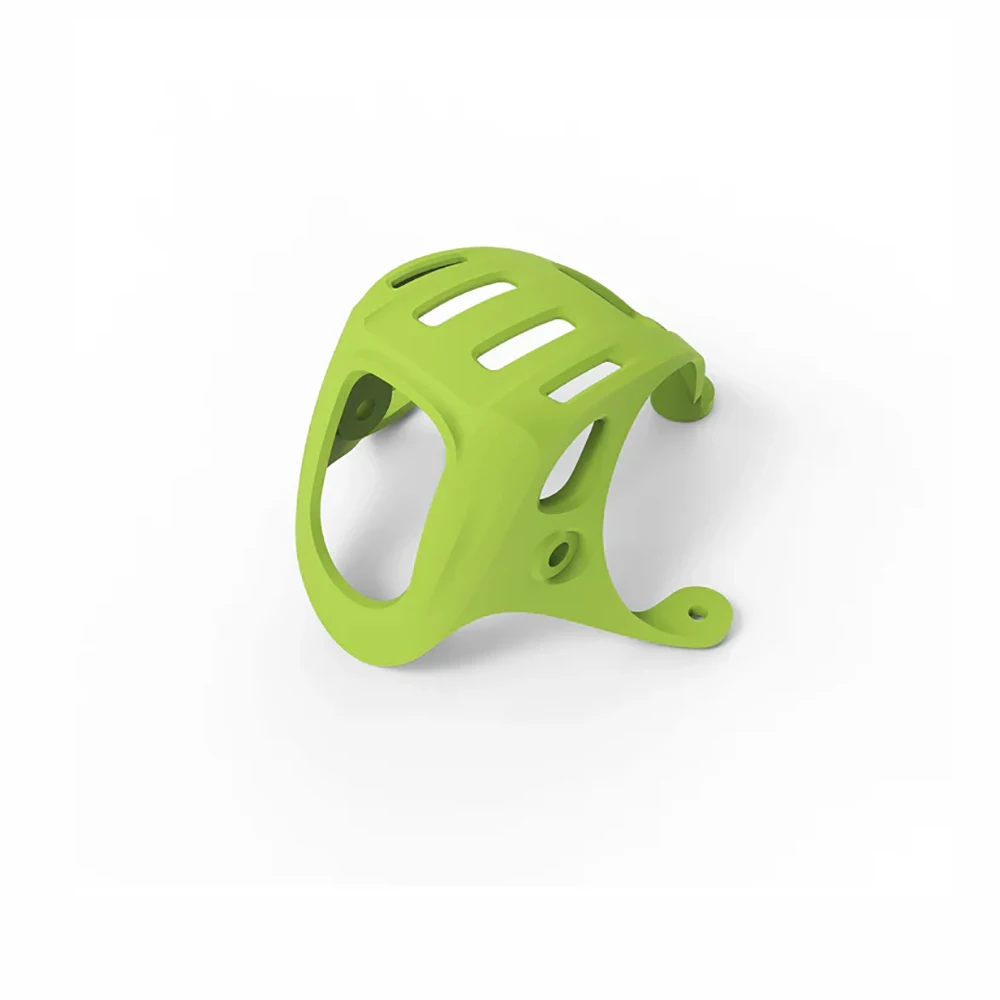

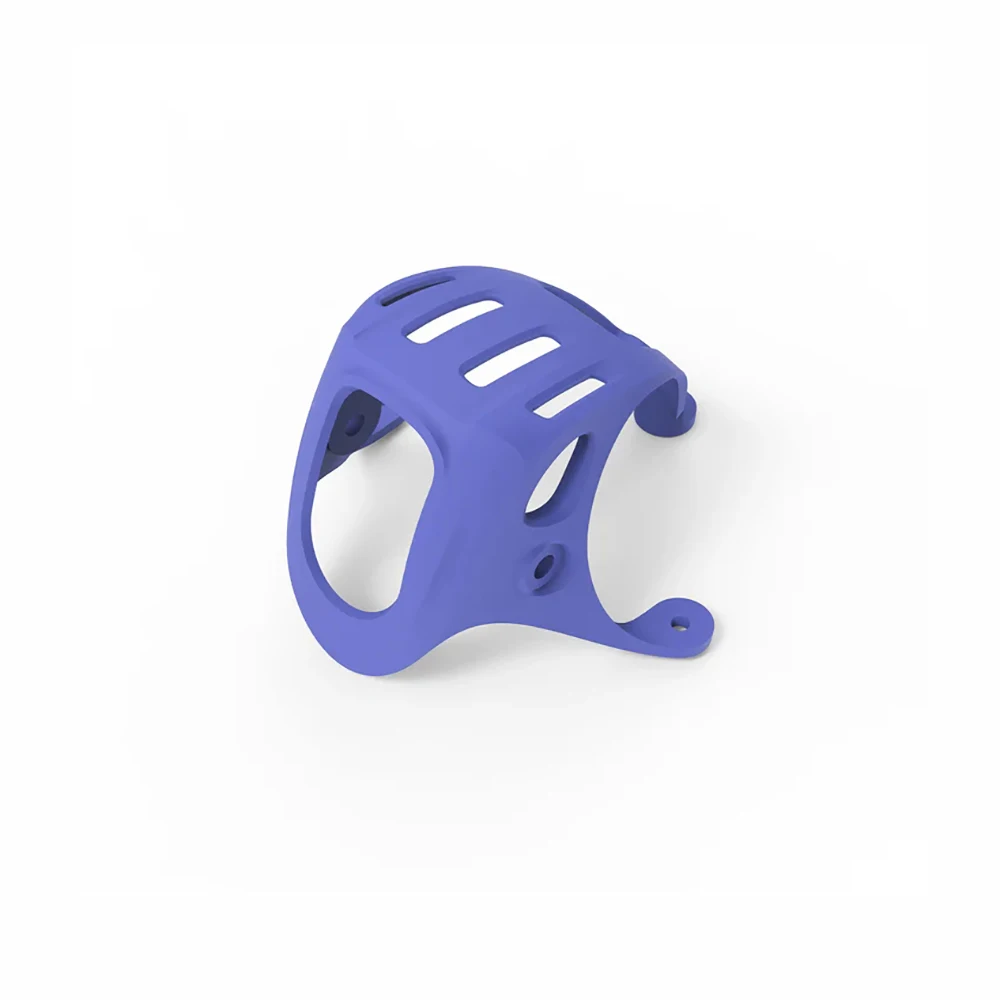

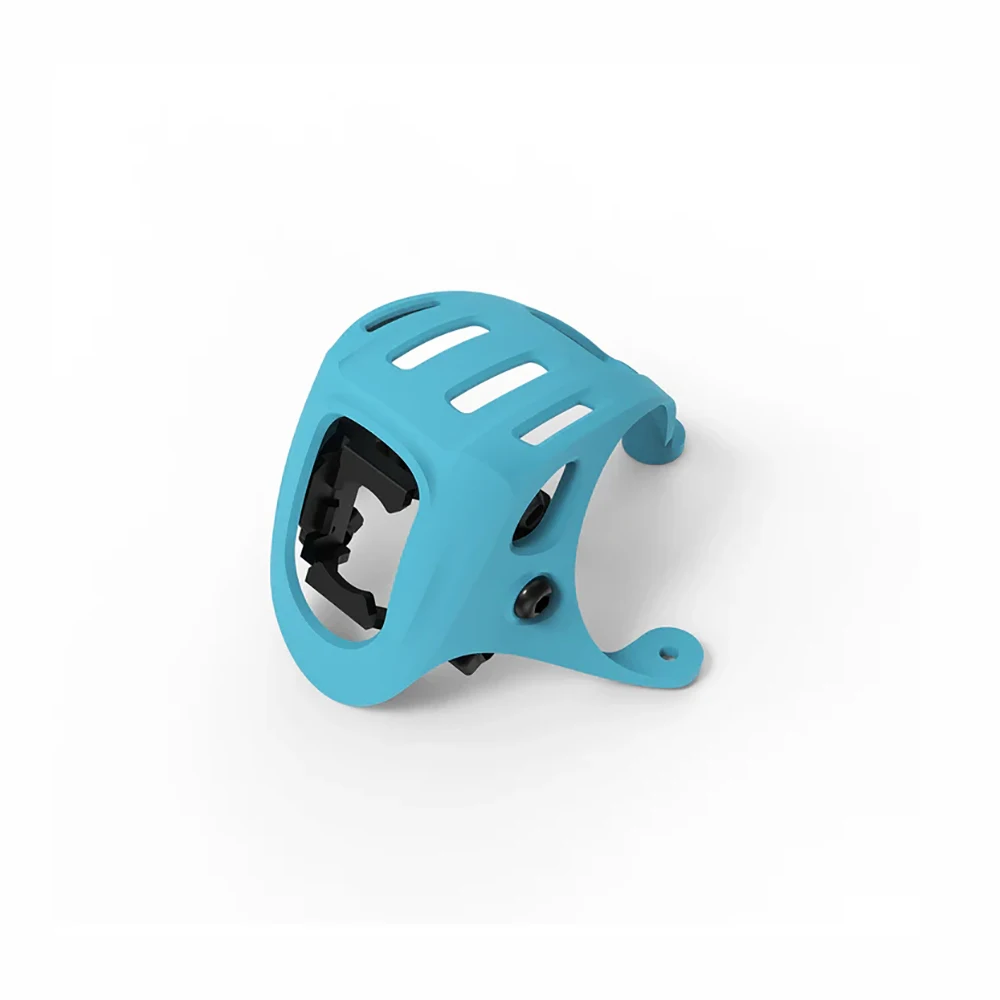

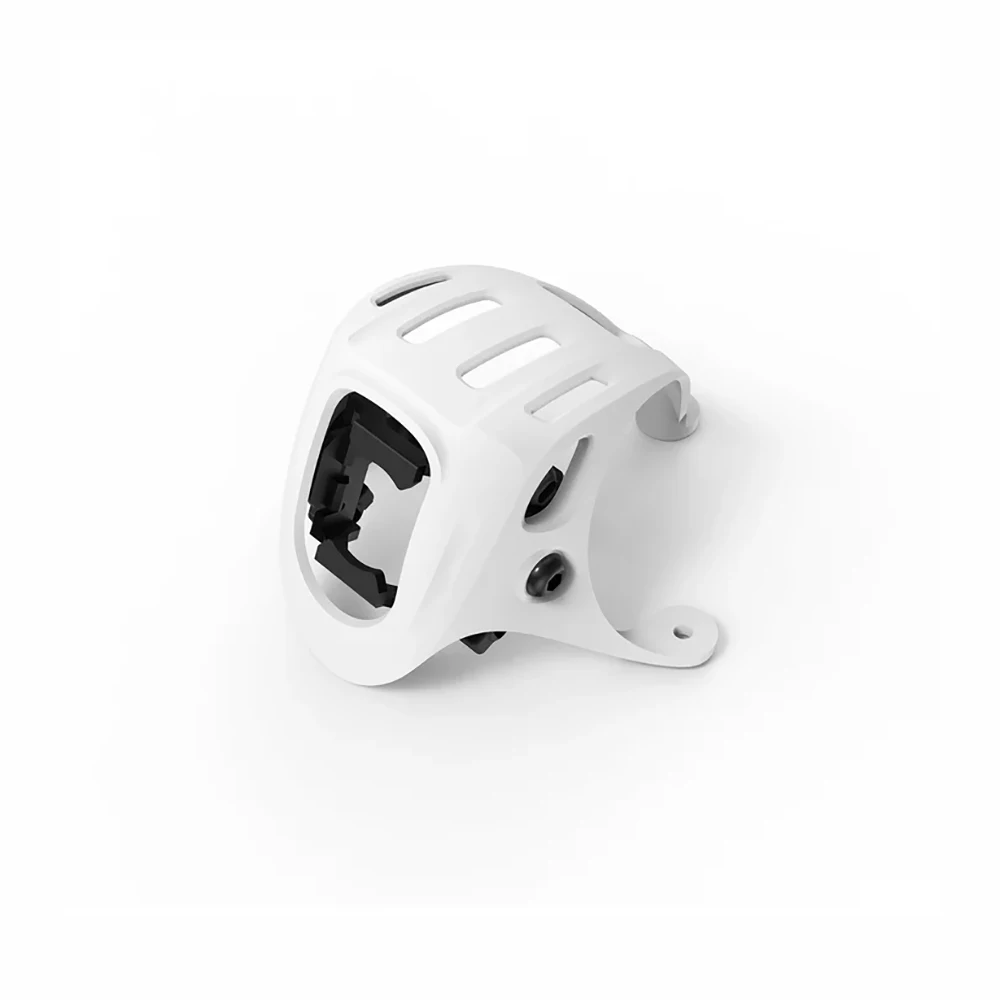

Designed for whoop drones, the Canopy for O4 Air Unit integrates BETAFPV's signature micro canopy design with optimized internal space and mounting holes for DJI O4 Air Unit shock-absorbing components. Featuring an adjustable camera angle from 10° to 35°, it ensures perfect HD footage without capturing the frame or top hood. With standard 25.5mm x 25.5mm mounting holes, it also supports DIY customization, giving pilots the flexibility to build their ideal whoops for any flight scene.Bullets

• Optimized for DJI O4 Air Unit: Integrates shock-absorbing components for stable HD footage.

• Adjustable Camera Angle: 10°-35° range suitable for various shooting scenes.

• DIY-Friendly: Standard 25.5mm x 25.5mm mounting holes for customization flexibility.

• Classic BETAFPV Style: Retains the iconic micro canopy design while protecting the camera.

Specifications

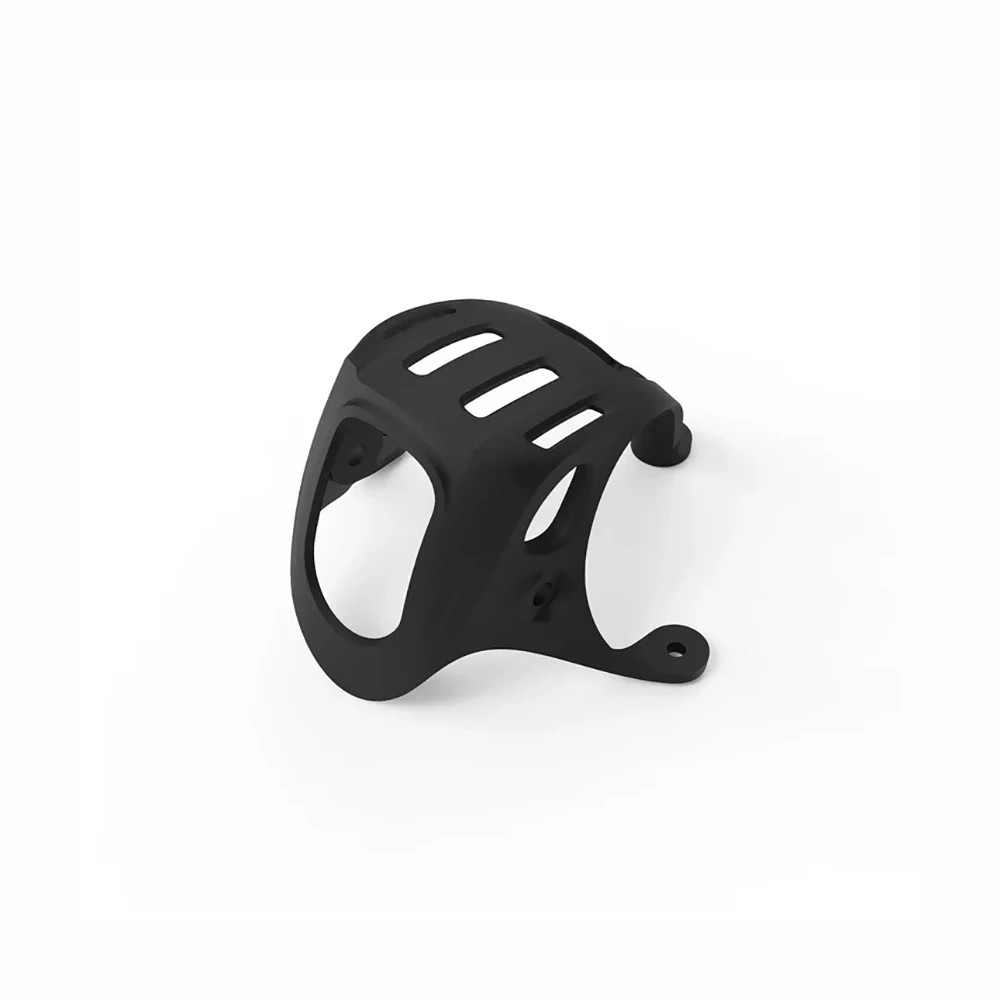

• Item: Canopy for O4 Air Unit

• Material: PP

• Color: White/Black/Green/Blue/Purple

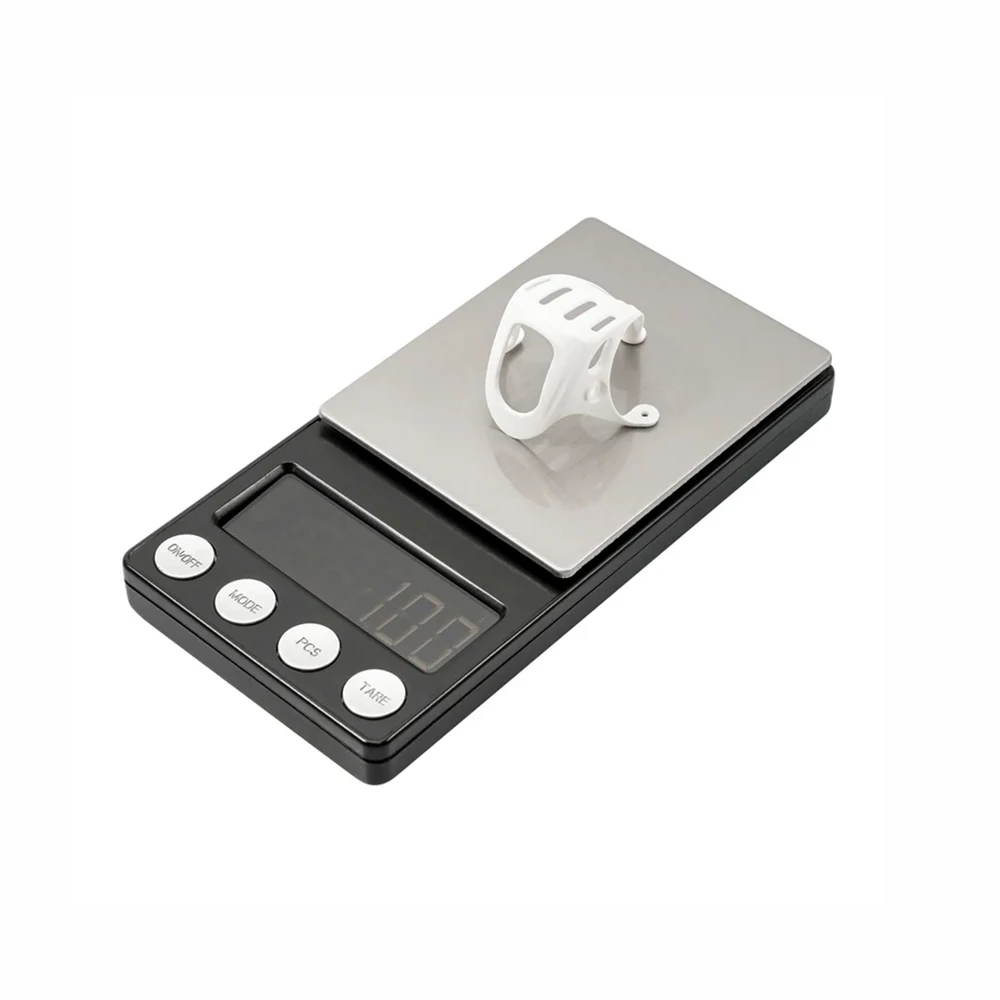

• Weight: 1.00g

• Mounting Holes: 25.5mm * 25.5mm

• Camera Installation Spacing: 20mm

• Compatible Camera: For DJI O4 Camera

• Tilt: 10°-35°

• Compatible Frame: Meteor65 Pro Frame, Meteor75 Pro Frame

Diagram

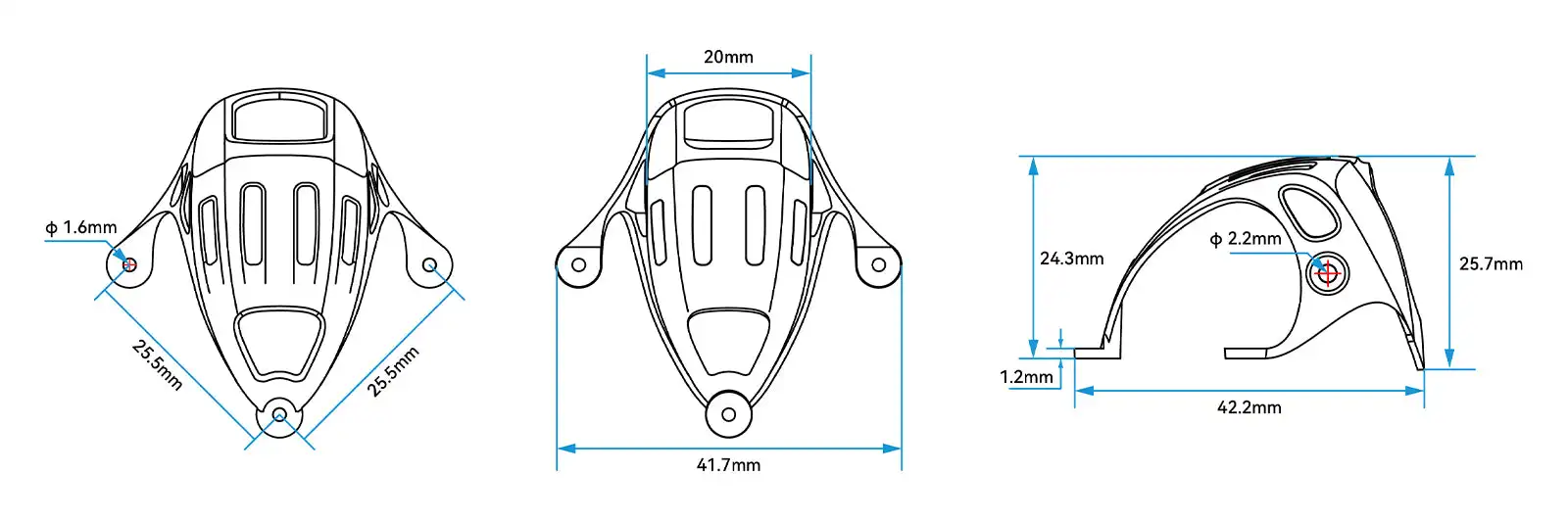

Diagram of Canopy for O4 Air Unit:

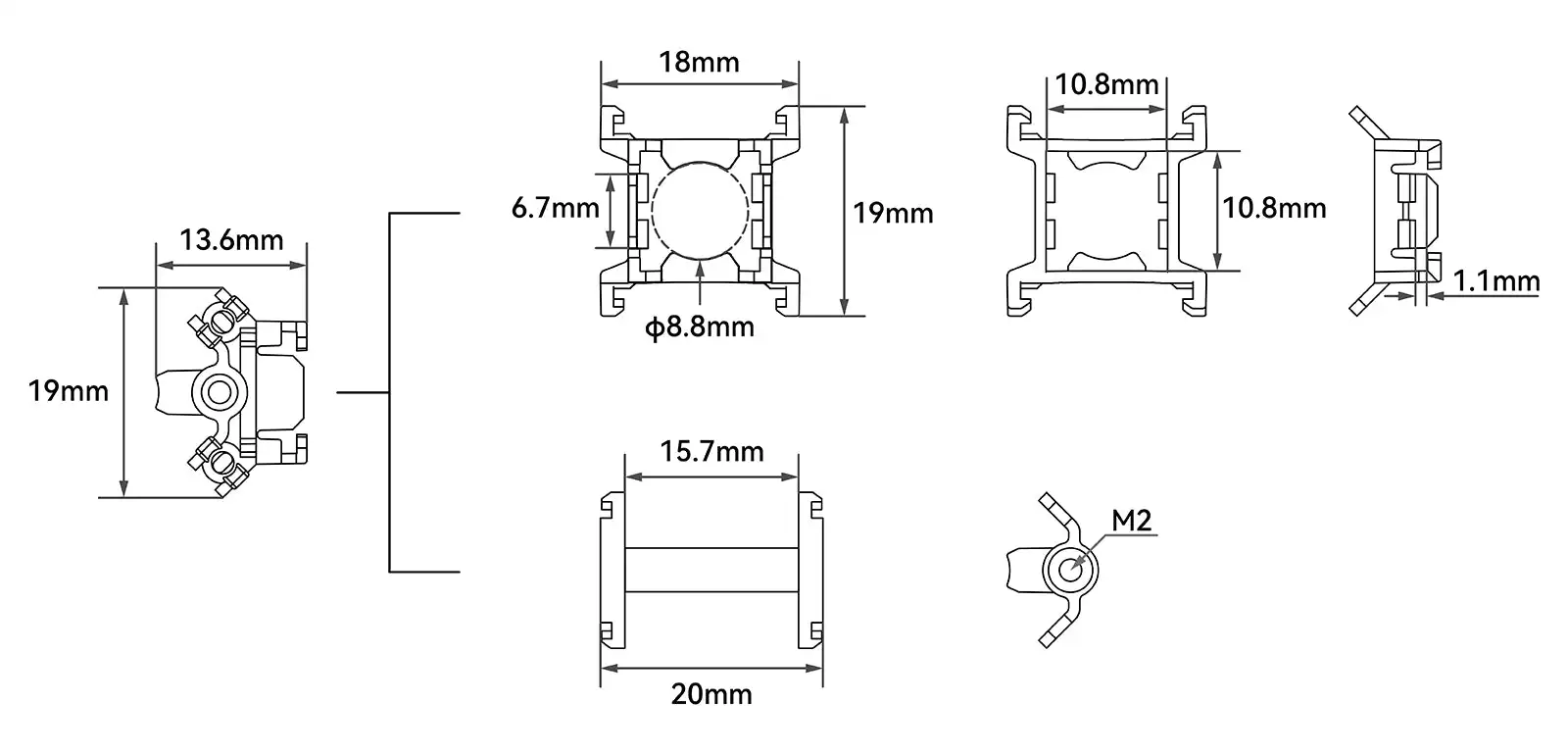

Diagram of Shock-Absorbing Components for O4 Air Unit:

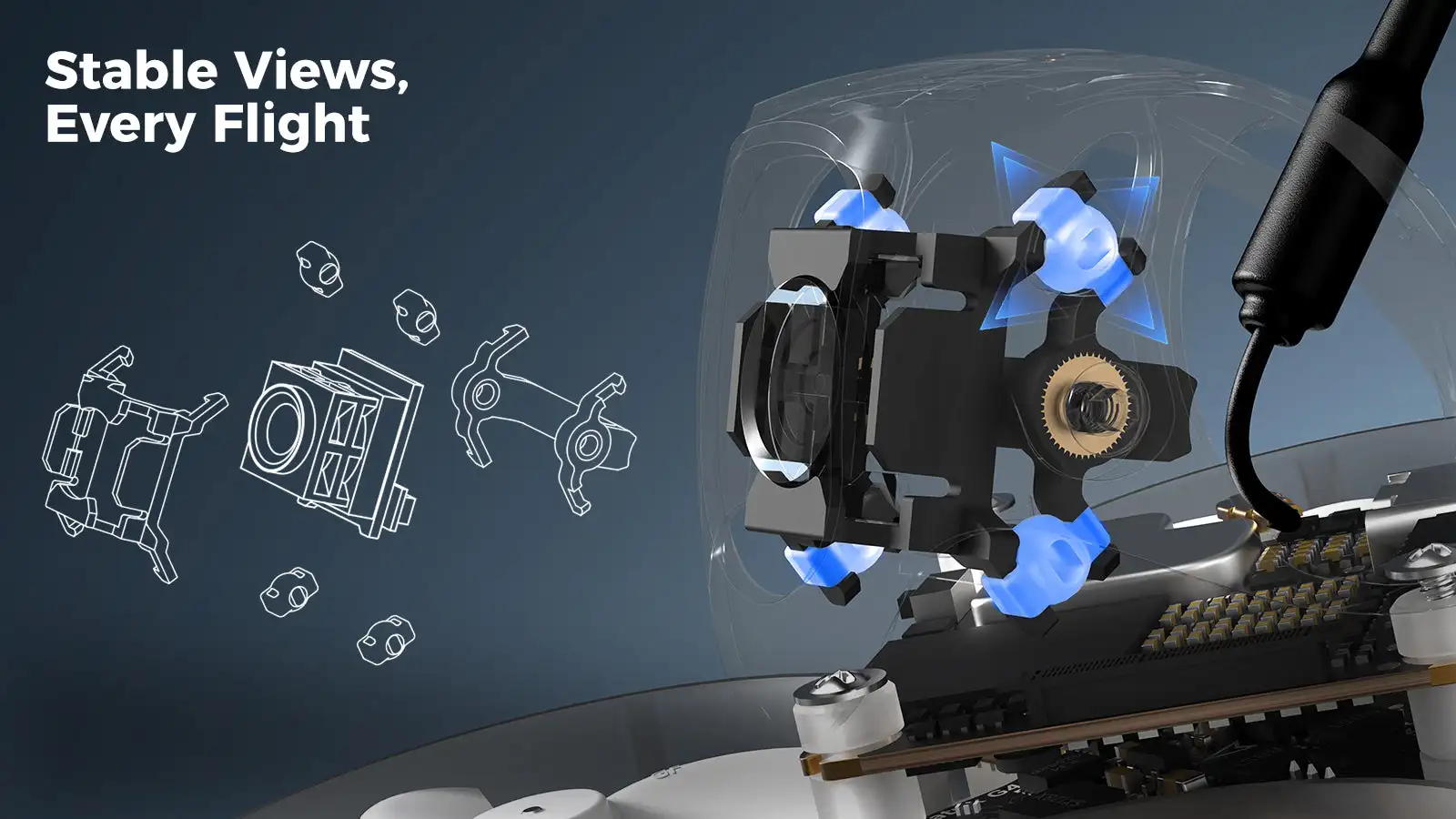

Optimized for Stability

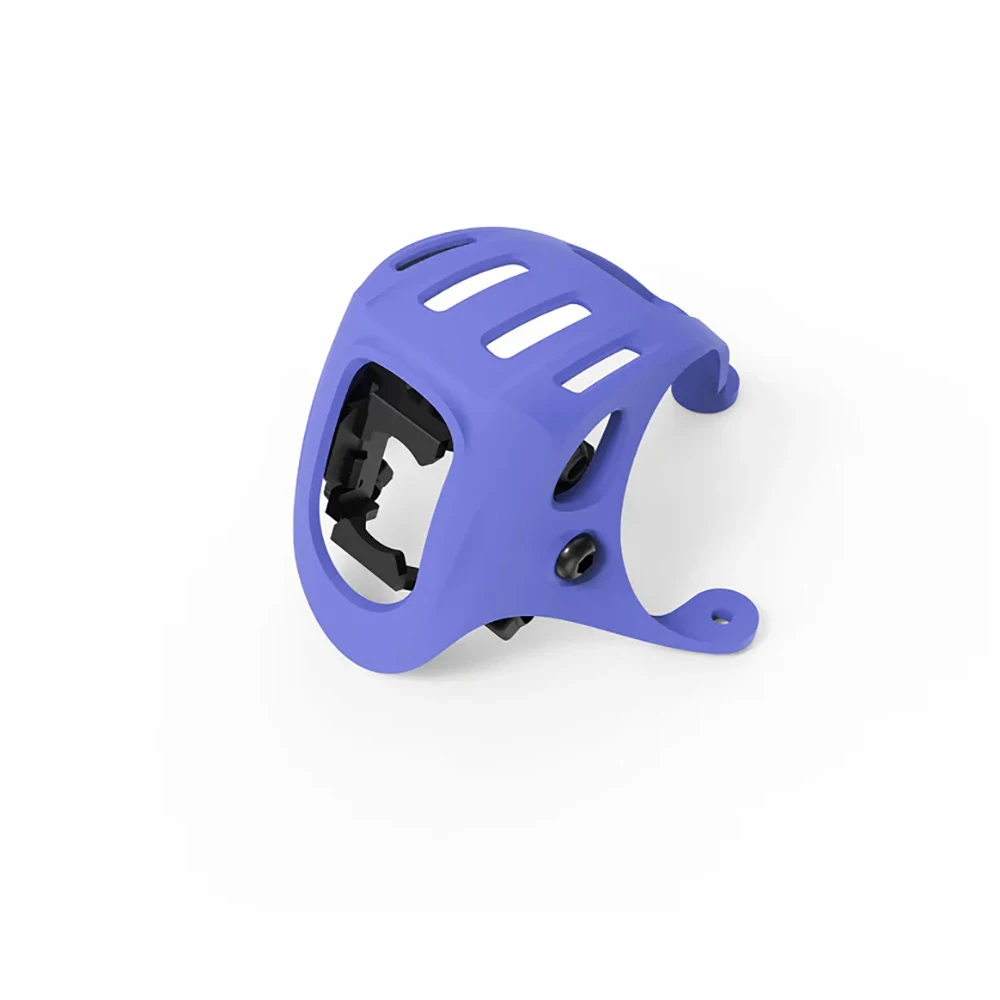

The Canopy is meticulously crafted to accommodate the DJI O4 Air Unit along with its shock-absorbing components. Its precise internal space and mounting hole design ensure secure attachment while minimizing vibrations.Note: This canopy includes the shock-absorbing components for the O4 Air Unit. For additional replacement components, please visit the Shock-Absorbing Components for O4 Air Unit page for details.

Versatile Canopy Design

The Canopy offers a 10° to 35° adjustable camera angle, ensuring flawless HD footage in various shooting scenarios. Its 25.5mm x 25.5mm mounting holes provide flexibility, allowing pilots to customize their whoops to perfection.Recommended Parts

• Whoops:Meteor65 Pro O4, Meteor75 Pro O4

• Frames: Meteor65 Pro Frame, Meteor75 Pro Frame

• Accessory: Shock-Absorbing Components for O4 Air Unit

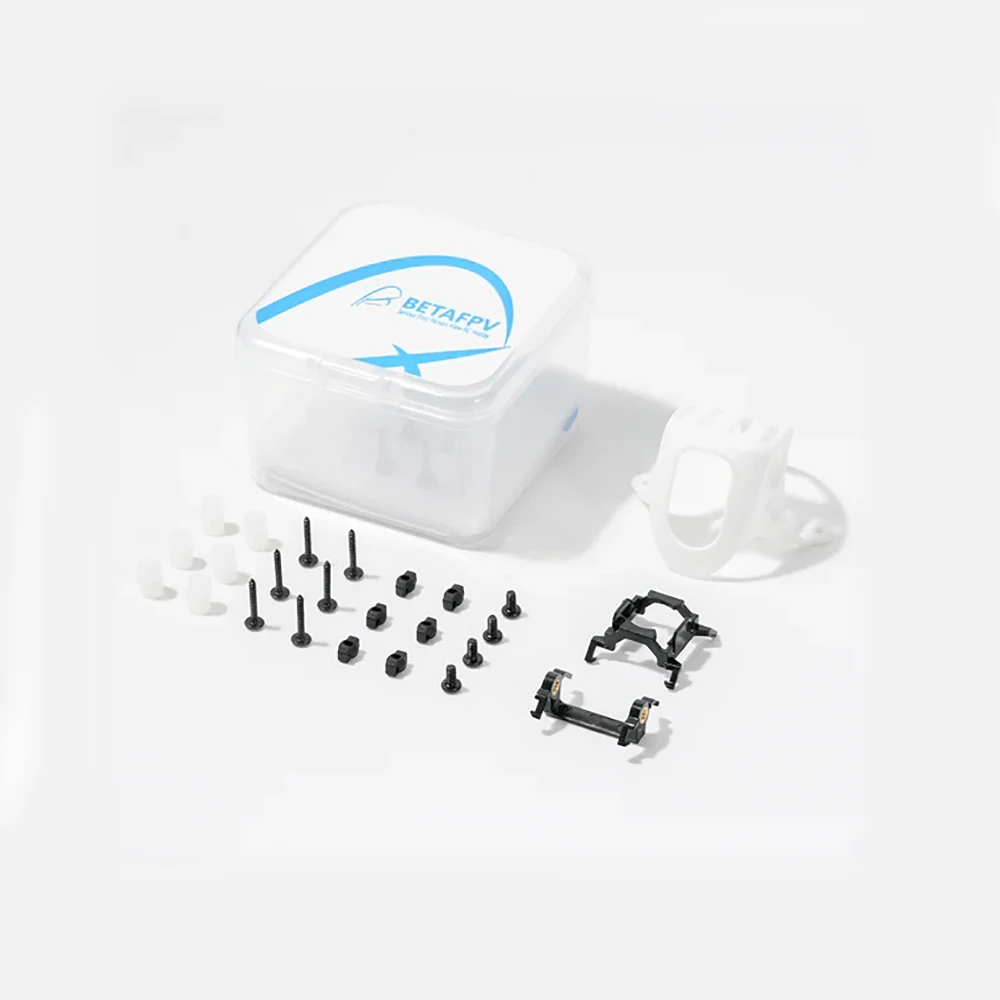

Package

1 * O4 Air Unit Canopy (white/black/green/blue/purple)

1 * DJI O4 camera mount

1 * DJI O4 camera shock-absorbing mount

6 * DJI O4 camera shock-absorbing balls

6 * HD shock-absorbing balls

4 * M2 * 4 flat head screws

6 * M1.4 * 10 * 4 Phillips flat washer head screws
