BETAFPV P1 unité aérienne HD VTX 1080p @ 60fps 60ms latence prise en charge du protocole ArtLynk pour Meteor75 Pro

BETAFPV P1 HD VTX 1080p @ 60fps 60ms Latency ArtLynk Protocol Supported for Meteor75 Pro P1/Achuila20 HD FPV Kit

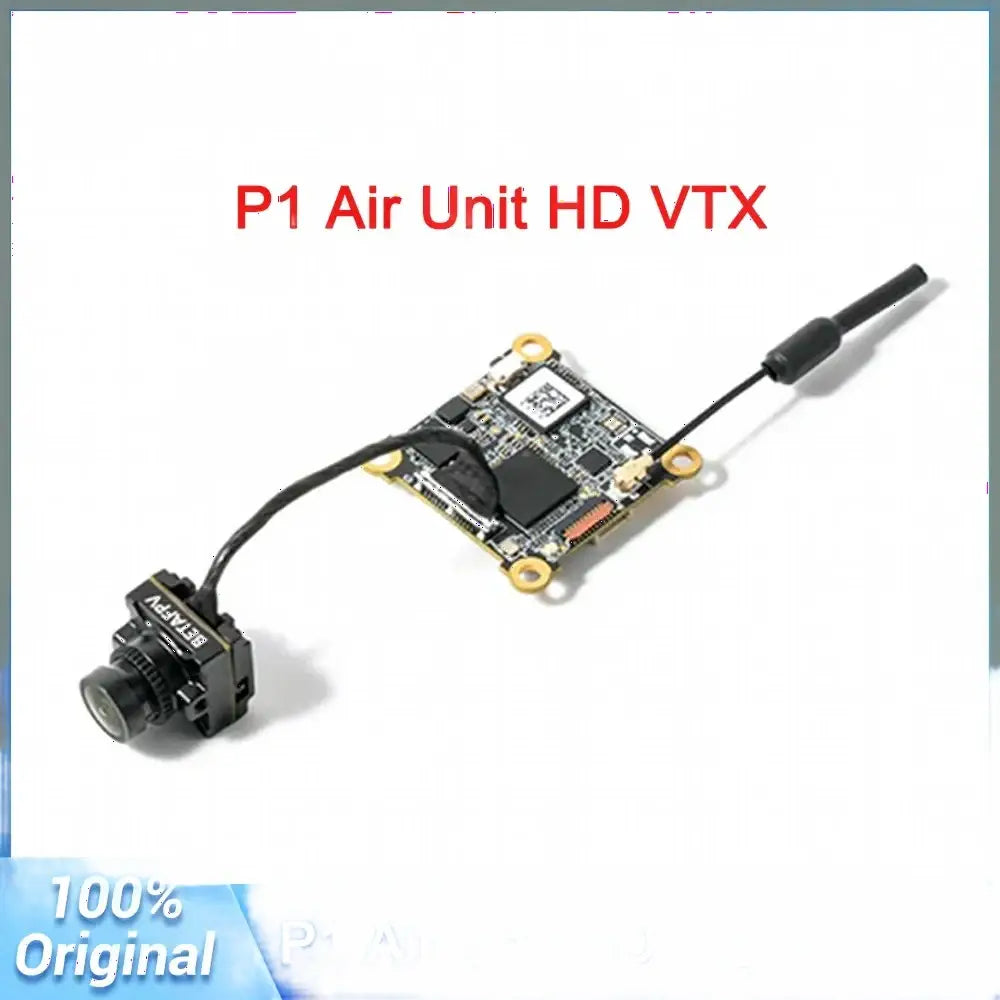

P1 Air Unit HD VTX

$188.59

$188.59 $264.03

BETAFPV P1 HD VTX 1080p @ 60fps 60ms Latency ArtLynk Protocol Supported for Meteor75 Pro P1/Achuila20 HD FPV Kit

$188.59

$188.59 $264.03

SPECIFICATIONS

Certification: CE,FCC

Product Dimensions: Camera 14*14*17mm; VTX 30*30*5.5mm

Frames Per Second: N/A

Max. Transmission Distance: 5km

Min. Latency (end to end): 60ms

Brand Name: BETAPVF

Origin: CN (Origin)

Package: Yes

Chemical Product of High Concern: None

Transmitter Power (EIRP): 25mW/200mW

Resolution: 1080p / 60fps

Drone Accessory Type: Data Transmission System

The P1 HD VTX Air Unit part of the ArtLynk Protocol Ecosystem, it offers exceptional 1080p 60fps live feed with approximately 60ms latency and an impressive transmission range of over 5km. Its 1/2.9" CMOS sensor and wide 170° FOV deliver an incredibly immersive and detailed perspective, making every flight intuitive and responsive. Designed for reliability in varied conditions, the system maintains a stable, interference-resistant connection whether zipping through dense forests or navigating complex urban environments.

Key Points

ArtLynk Protocol: A long-range, low-latency communication protocol for drones, offering superior stability and range compared to traditional analog VTX systems.

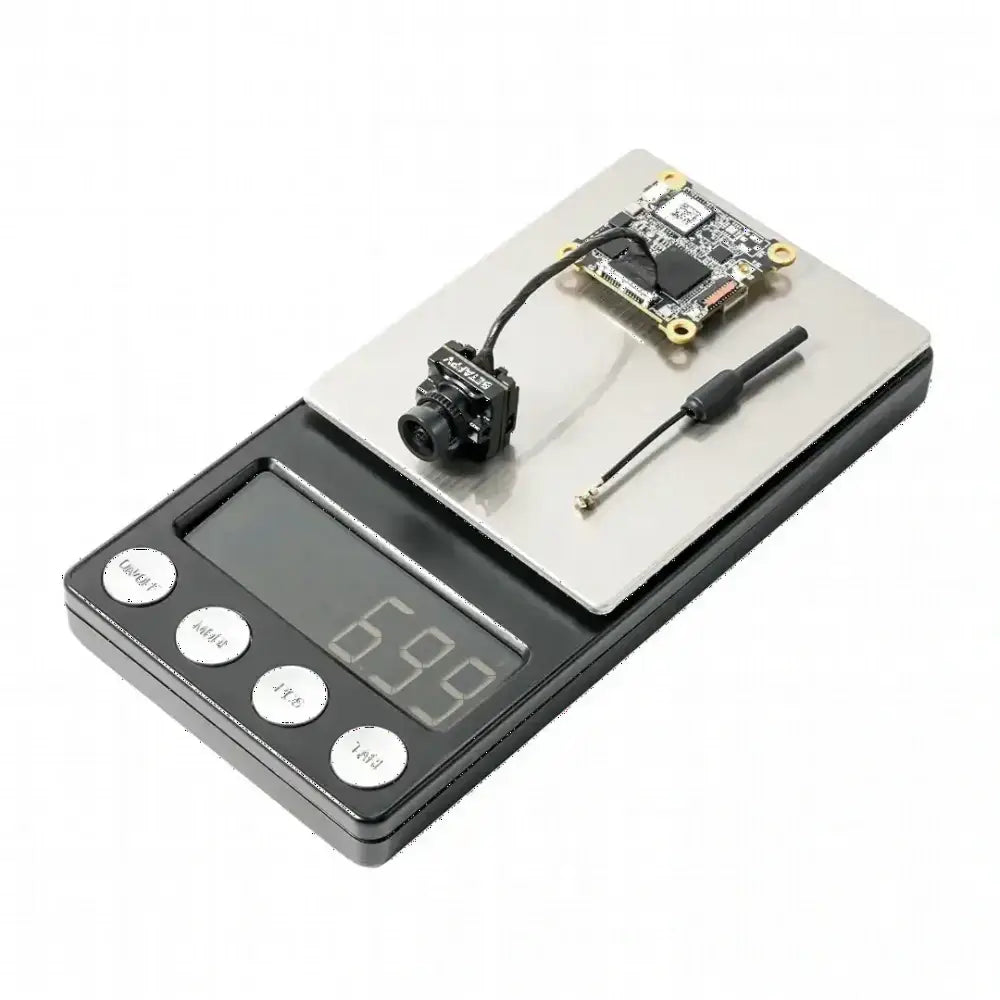

Lightweight & Affordable HD: Weighs only 6.8g, providing a compact and affordable HD VTX solution.
Reliable Video Transmission: Delivers smooth video with approximately 60ms latency and a range of over 5km.
1080p Wide-Angle Clarity: 1/2.9" CMOS sensor and 170° FOV for a crisp and immersive live view.
Plug-and-Play Compatibility: Standard 6-pin port works seamlessly with Betaflight and BETAFPV flight controllers.

Specifications

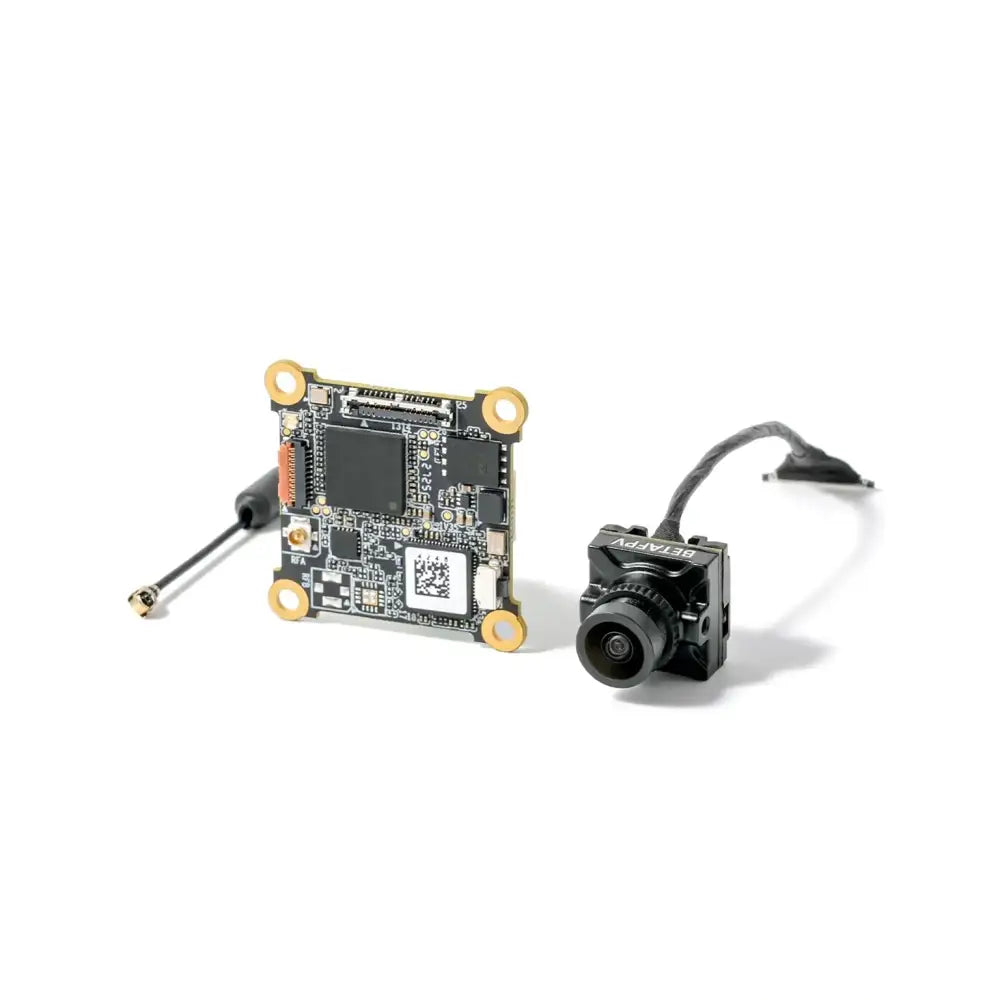

Air Unit
Weight	Air Unit (Camera excluded): Approx. 3.61g Air Unit (Camera included): Approx. 6.5g Antenna: Approx. 0.44g
Mounting Hole Size	25.5*25.5mm
Mounting Hole Diameter	ø2.5 mm
Dimensions (LWH)	Air Unit: 30305.5mm Camera: 141417mm
Ports	SH 1.0 6-Pin (FC) SH 1.0 4-Pin (USB)
VTX
Frequency	5.1-5.9GHz
Effective Isotropic Radiated Power (EIRP)	＜200mW (FCC/SRRC) <25mW (CE)
Video Transmission Range	>5km
Video Transmission Latency	Approx. 60ms
Live View Quality	1080p@60fps
Bandwidth	10MHz
Antenna	Single Antenna
Channels	3
Camera
Mounting Width	14mm
Mounting Hole	M2
Image Sensor	1/2.9'' CMOS
Lens	Field of View (FOV): 170°
Video Format	MP4
Max. Video Transmission Bitrate	20Mbps
OSD	Canvas Mode
Firmware
Input Voltage	5V
Operating Temperature	-10℃ to 40℃
Compatibility
Supported FC	Betaflight FC & BETAFPV FC

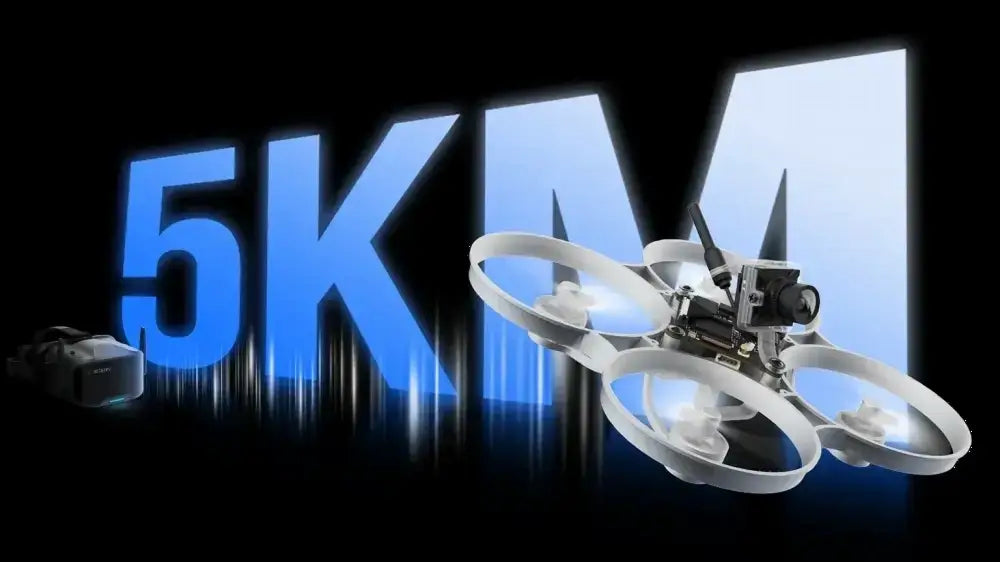

Reliable Video Transmission

The P1 Air Unit offers reliable and clear video transmission with a maximum output power of 200mW and a range of over 5km*. With a low latency of about 60ms, enjoy stable, glitch-free video that lets you fly further and explore with confidence. The standby mode automatically adjusts the power based on the distance between your goggles and the drone, keeping your live view connected even during a crash.

Our real-world testing in open areas and with 200mW output power shows a transmission range of over 5km. The actual range may vary depending on the environment and interference.

1080p Wide-Angle Clarity

Equipped with a 1/2.9" CMOS sensor and a wide 170° FOV, the camera captures vivid, detailed footage even in varying lighting conditions. See more of your surroundings with clarity akin to high-definition transmission, making every flight more immersive and responsive.

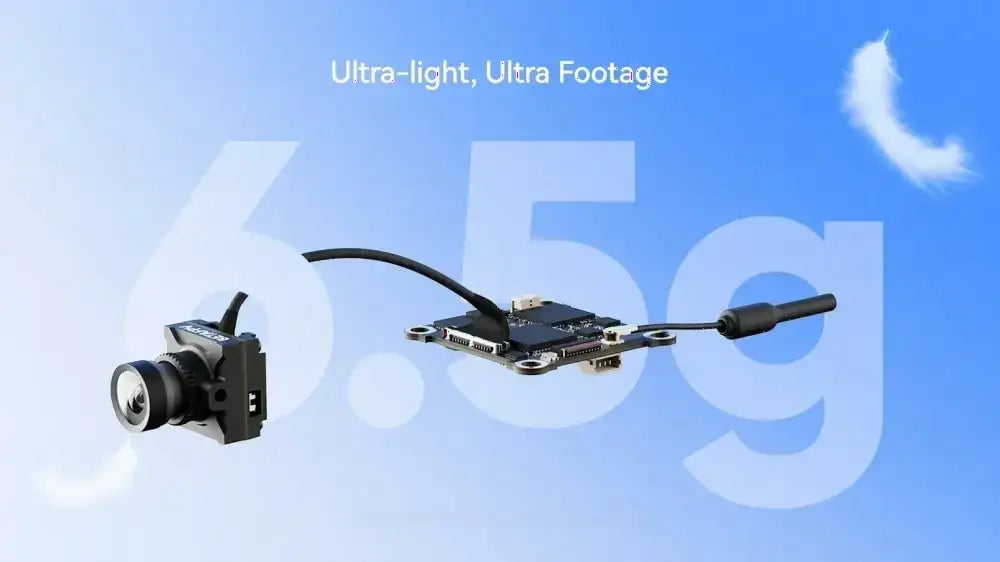

Lightweight & Affordable HD

At just 6.5g (antenna excluded), the P1 Air Unit offers a compact and budget-friendly HD video solution, enabling you to build your perfect HD whoop without compromise.

Broad Compatibility

Featuring a standard 6-pin SH1.0 port and MSP communication protocol for OSD, the P1 Air Unit seamlessly supports both Betaflight and BETAFPV flight controllers.

Learn More About ArtLynk Protocol

The P1 Air Unit's HD VTX is part of the ArtLynk Protocol, a long-range, low-latency communication protocol for drones, offering superior stability and range over traditional analog VTX systems. The ArtLynk protocol allows for real-time HD video with about 60ms latency from lens to screen, which is crucial for smooth flight control and high-quality FPV (First Person View). Here are the key features you might want to know.

Integrated Artosyn & KAP-CompatibleThe ArtLynk Protocol uses Artosyn’s latest AR803X chipset, with core technical support provided by KAP (KAP company provides core technical support or product solution to all FPV companies and ensure compatibility across various FPV products utilizing Artosyn chipsets).
Collaborative & Open CommunityThe ArtLynk Protocol is a collaborative FPV ecosystem that is NOT only owned by one company. Many FPV companies and teams design and produce their own products based on the ArtLynk Protocol, ensuring wide compatibility and fostering the community.

The ArtLynk Protocol supports VR04 HD Goggles, Aquila20 HD, Meteor75 Pro P1 whoops, and many more—allowing you to customize your own setup or simply pair and fly.

How to Connect with FC

Utilize the included 6-pin cable to connect the P1 Air Unit to your flight controller. Refer to the diagram below for proper pin alignment and wiring sequence.
