Note:
The battery will be replaced with 18650 battery case to facilitate transport, and it does not have a balance plug for DVR module, DVR module need to use another power supply, thanks for your understanding!
The receiver of the EV100 goggles does not receive audio. But the goggles support audio input, so you can hear audio if you input video to the goggles.

Description:
Brand Name: Eachine
Item Name: EV100
Size: 165mm*76mm*30mm
Weight: 221g (with 57g battery and 13g antenna)
Package Weight: 400g

Display
Resolution: 720*540
FOV: 28° diagonal
IPD: 58-68mm
Ratio: 4:3
Focal length adjustment: less than 400 degrees of myopia and 150 degrees hyperopia

Specification
Frequency: 5.8G 5333MHz-5945MHz.
Sensitivity: <=-93dB
Antenna Impedance: 50Ω
Antenna Gain: 3dBi
Antenna Connector: RP-SMA
Video Format: NTSC/PAL
Support AV input/output
Support focal length/brightness/contrast adjustment
Support firmware upgrade
Power Input: 7.4V
Low Voltage: 6.8V
Battery: 18650 battery case
Charging: USB cable (not included)
Working Temp.: -10℃-+40℃

Features:

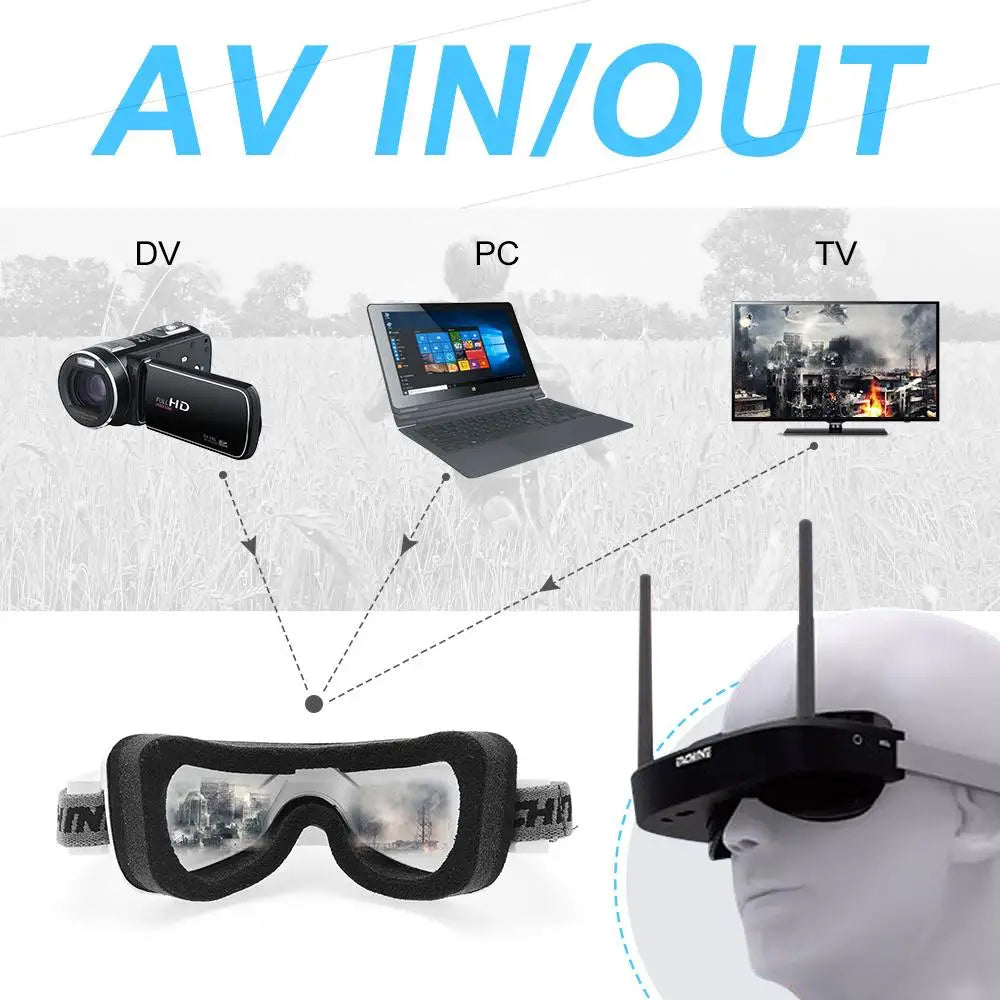

Supports AV input and output (It does not support audio in FPV mode, because the built-in receiver cannot receive audio. But in AV-IN mode, audio is available.)
Supports external DVR module

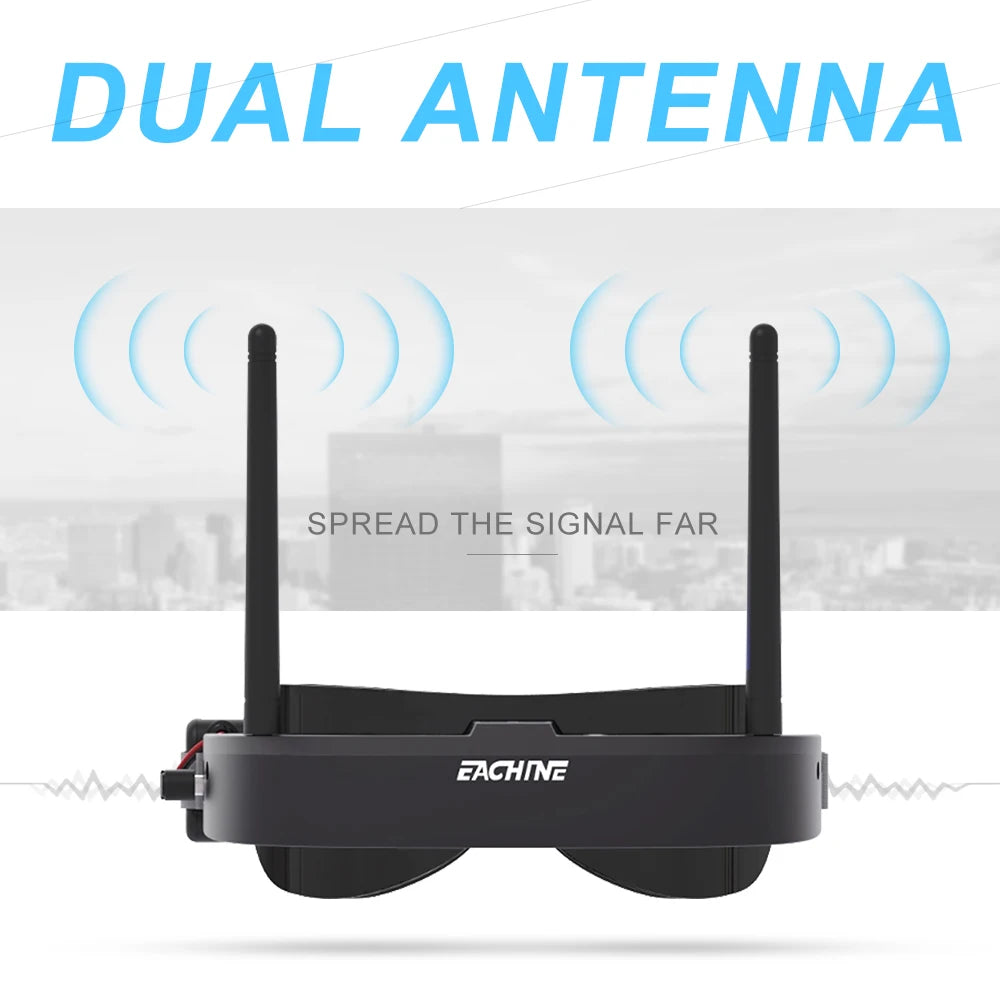

A single receiver with dual antennas improves reception and stable performance.
With Fan, you can defog the goggles for a good visual experience.
Adjustable focal length allows pilots with less than 400 degrees of myopia to view directly with the naked eye
Adjustable IPD 58~68mm
Auto Search function automatically searches all frequencies and selects the strongest signal channel.
Has 3 racing modes: 4/6/8 pilots. The 60-80MHz interval between adjacent channels greatly reduces interference.
Has Debug mode, requires a matching VTX that supports pit mode and additional 5300MHz frequency

Recommended Parts
FPV VTX: 5.8Ghz VTX
Small FPV camera: 5.8GHz Camera

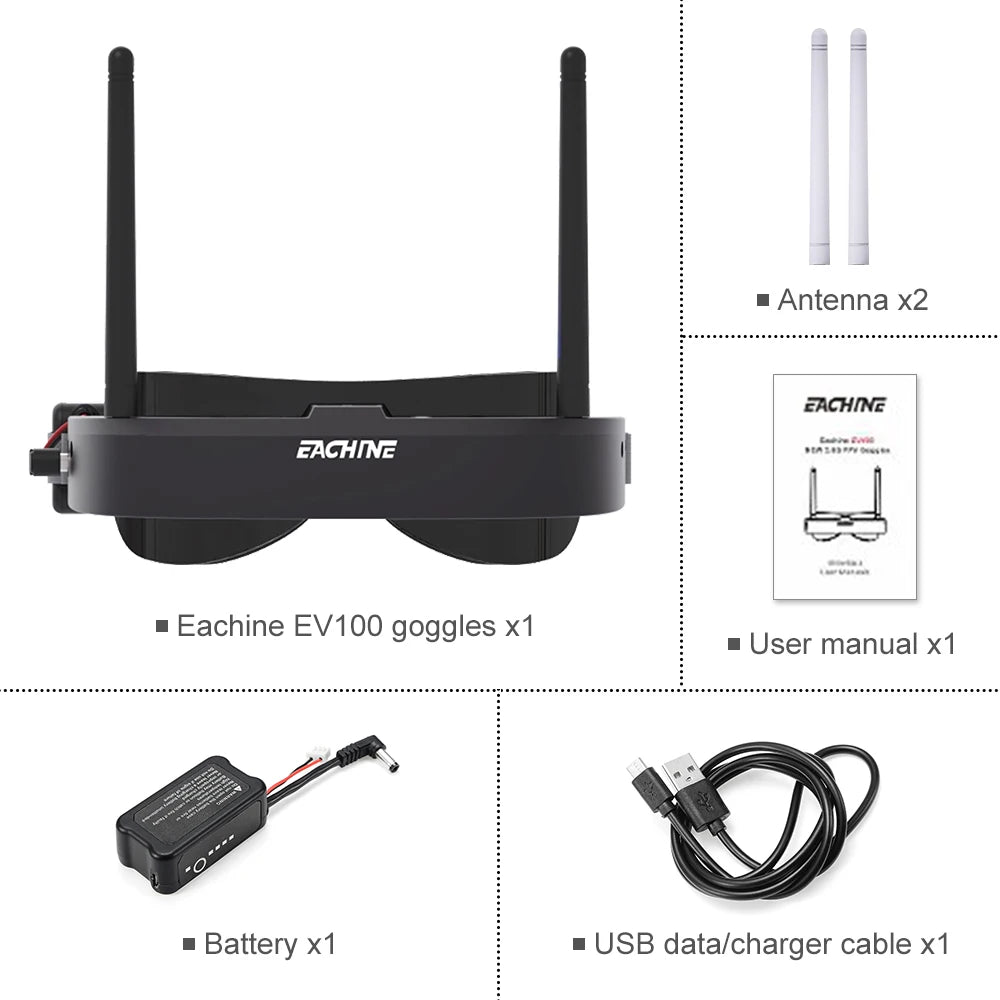

Package Included
1 x Eachine EV100 5.8G 72CH FPV Goggles
1 x 18650 Battery Case
2 x RP-SMA 3dBi Antenna
1 x User Manual
