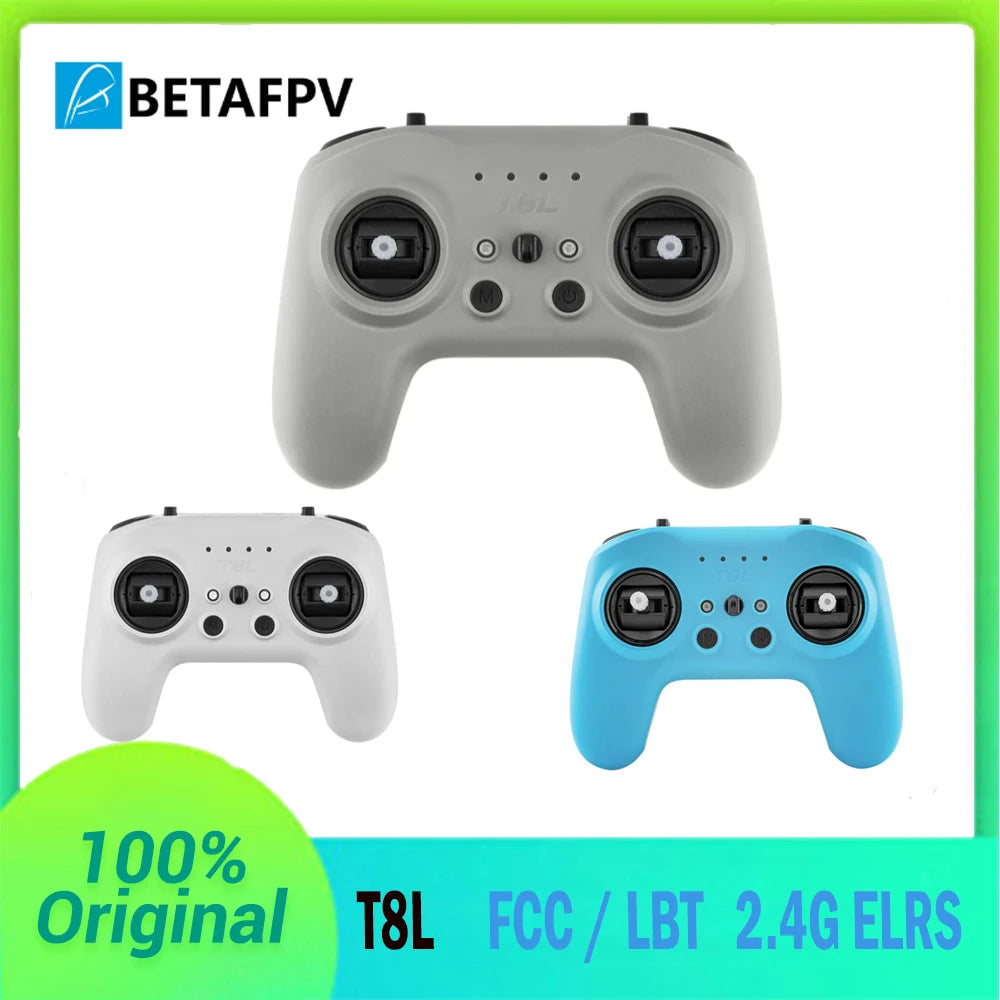

The RadioMaster T8L brings the power of 2.4GHz ExpressLRS in a clean, compact form factor — and is the first officially ExpressLRS supported screenless radio controller.

Designed for pilots who prioritize simplicity, portability, and reliability, the T8L delivers responsive control with up to 10 channels via the CRSF protocol. Whether you’re flying a micro multi-copter, fixed-wing aircraft, or just need a dependable backup radio, the T8L gives you a smooth, optimized experience, ideal for indoor or park flying.

With high-precision, four-bearing Hall Gimbals, built-in USB-C charging, and simulator compatibility, the T8L is ready to go right out of the box. Setup is quick and easy thanks to a web-based configuration tool that runs directly in Chrome or Edge — no external screen or software required.

Features

• Built-in 2.4GHz ExpressLRS Module

• One-button binding to any ExpressLRS receiver

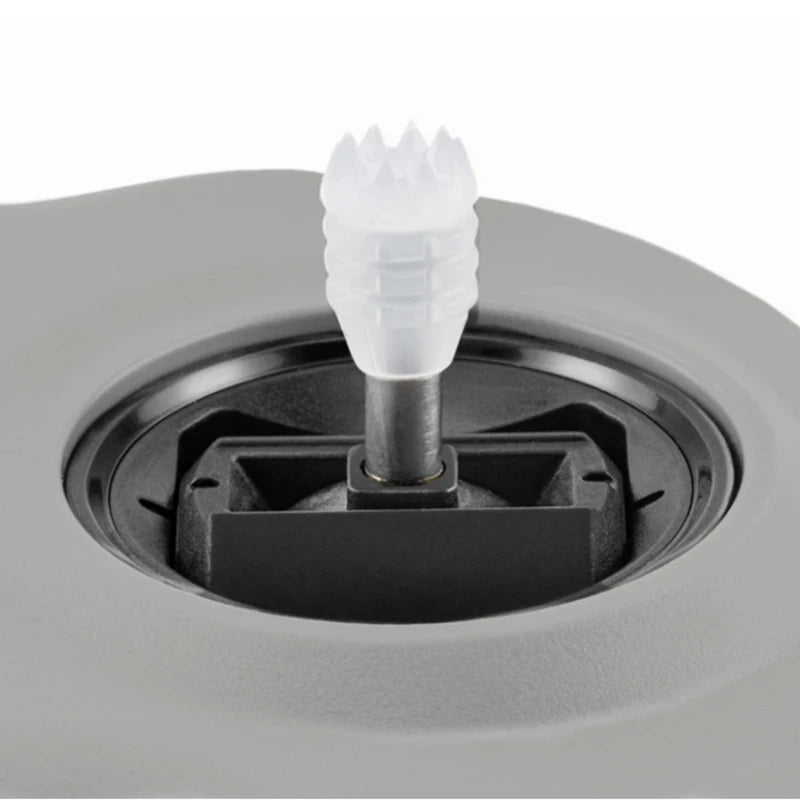

• Four-bearing Hall Gimbals for smooth, precise joystick control.

• 5-direction trim buttons with LED and audible feedback

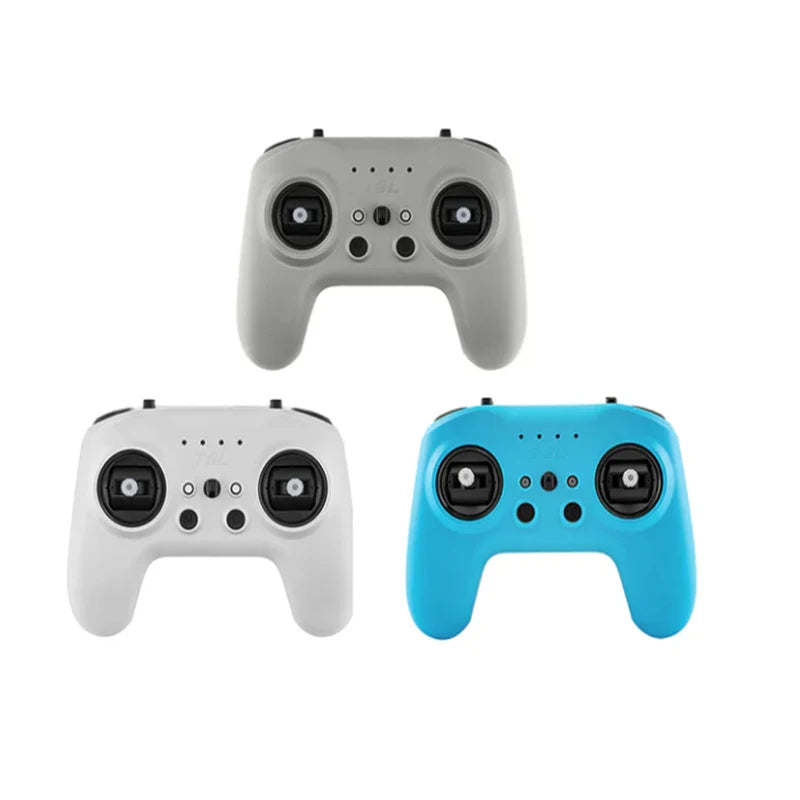

• Available in three colors: Blue, White, and Grey

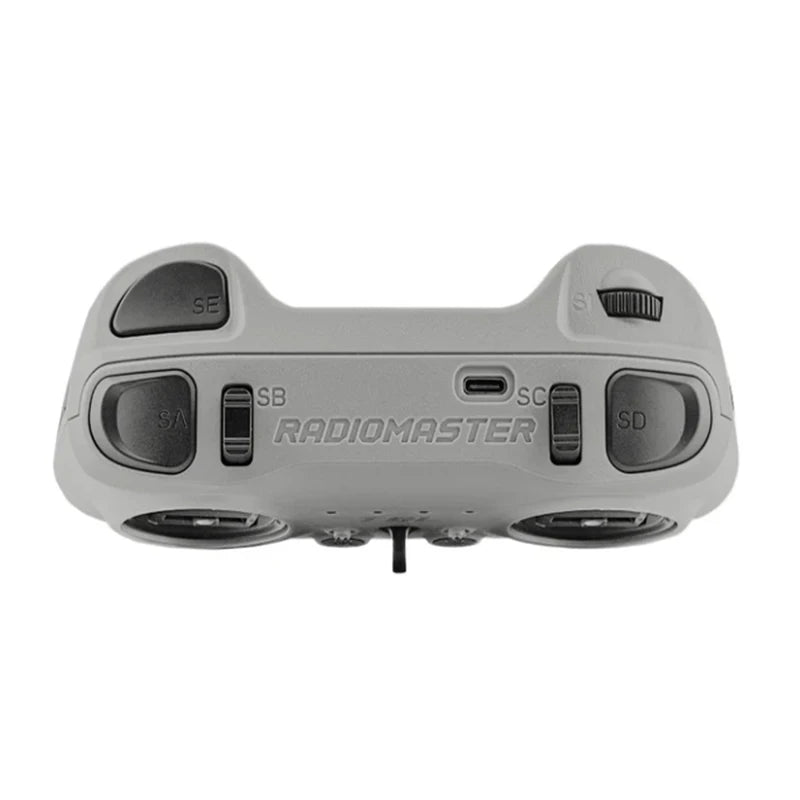

• USB-C port for charging, firmware updates, and simulator use

• Web UI support (no screen required) for full configuration

• Up to 10 channels supported (receiver dependent)

• Rear potentiometer slider for additional input or trim

• Compact and lightweight design (only 204g) for easy portability.

• LED interface for system status, battery level, and calibration

• Simulator compatible: connect via USB and start flying virtually.

• Custom button and switch behavior settings via Web UI

Specification

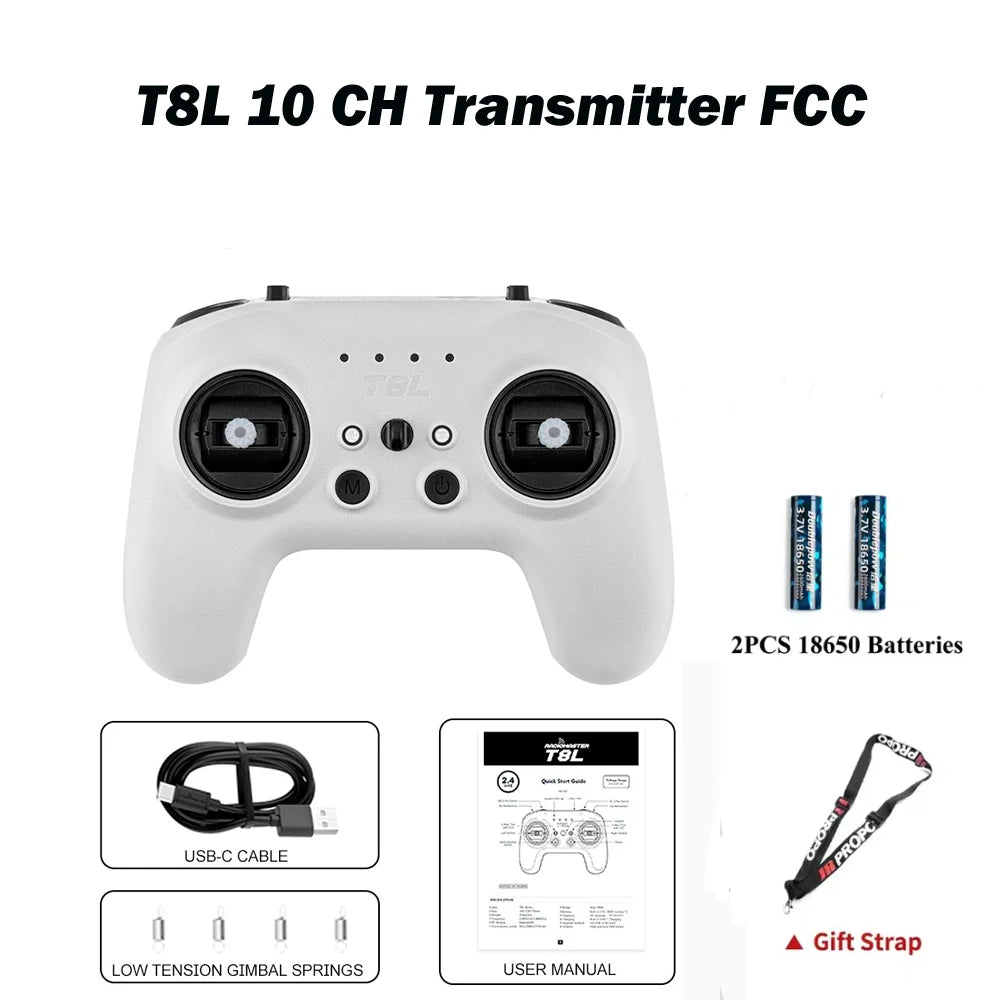

• Item: T8L Radio Controller

• Size: 165*120*70mm

• Weight: 204g

• Frequency: 2.400GHz - 2.480GHz

• RF Module: 2.4GHz ExpressLRS (SX1281)

• Transmit Power: Adjustable from 10dBm (10mW) - Max. 20dBm (100mW)

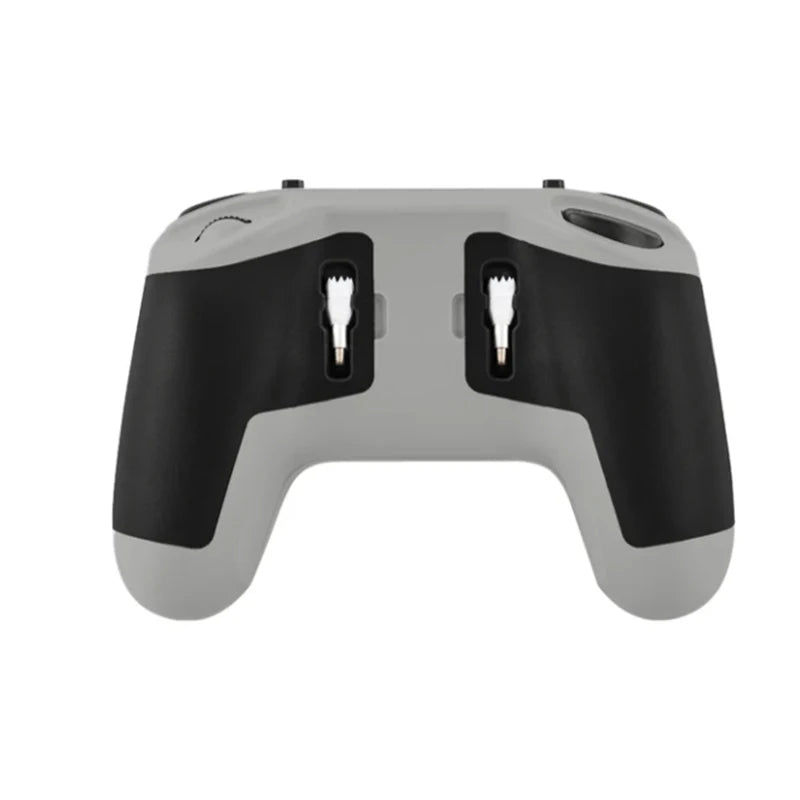

• Battery: 3.7v 18650 x 2 (Not included)

• Charging: Built-in USB-C Charging

• Firmware: T8L (T8L Special Edition, not configurable)

• Colors: Blue, White, Grey.

• Channels: Up to 10 channels (depending on model/receiver)

• Gimbal: X5 Hall, Quad-bearing, Nano Gimbals

Smart Configuration via the Web

The T8L features a powerful HTML web user interface (UI) that allows you to configure every core function directly from your browser. Plug it into a PC or Mac via USB-C, open the web tool, and you can:

• Calibrate sticks and trims.

• Adjust ExpressLRS settings and output power.

• Customize endpoint ranges and reverse directions.

• Remap channels and set operation modes (Mode 1 / Mode 2).

• Customize switch behavior (click, single, double).

• Adjust audio prompts and update firmware.

• Update both the T8L and its built-in ELRS module.

• No apps. Just plug in, connect, and configure.
