3 versions you can choose: 5.8G, 4.9G, 6.2G!

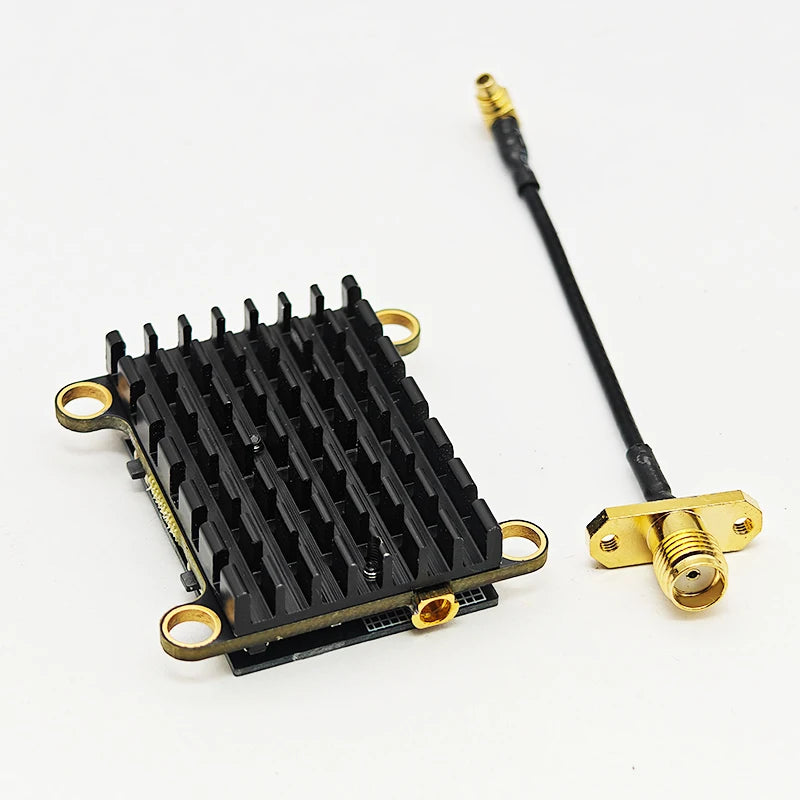

TX2000N Mapping Transmission User Manual

Be sure to connect the antenna before powering on, otherwise it will burn out!!!!

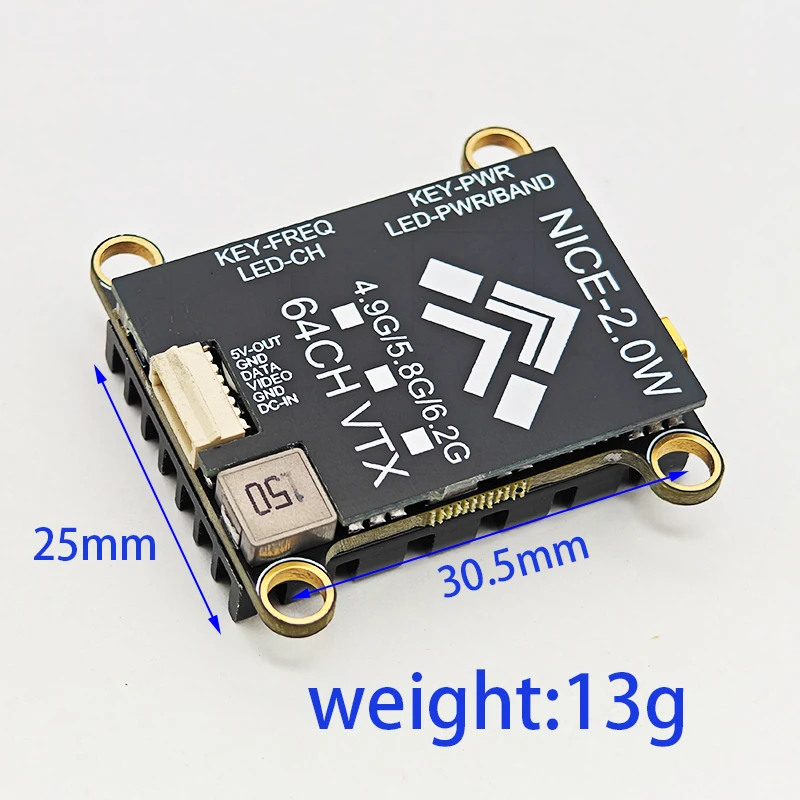

1. Basic parameters:
-Weight: 13.5g (without antenna)

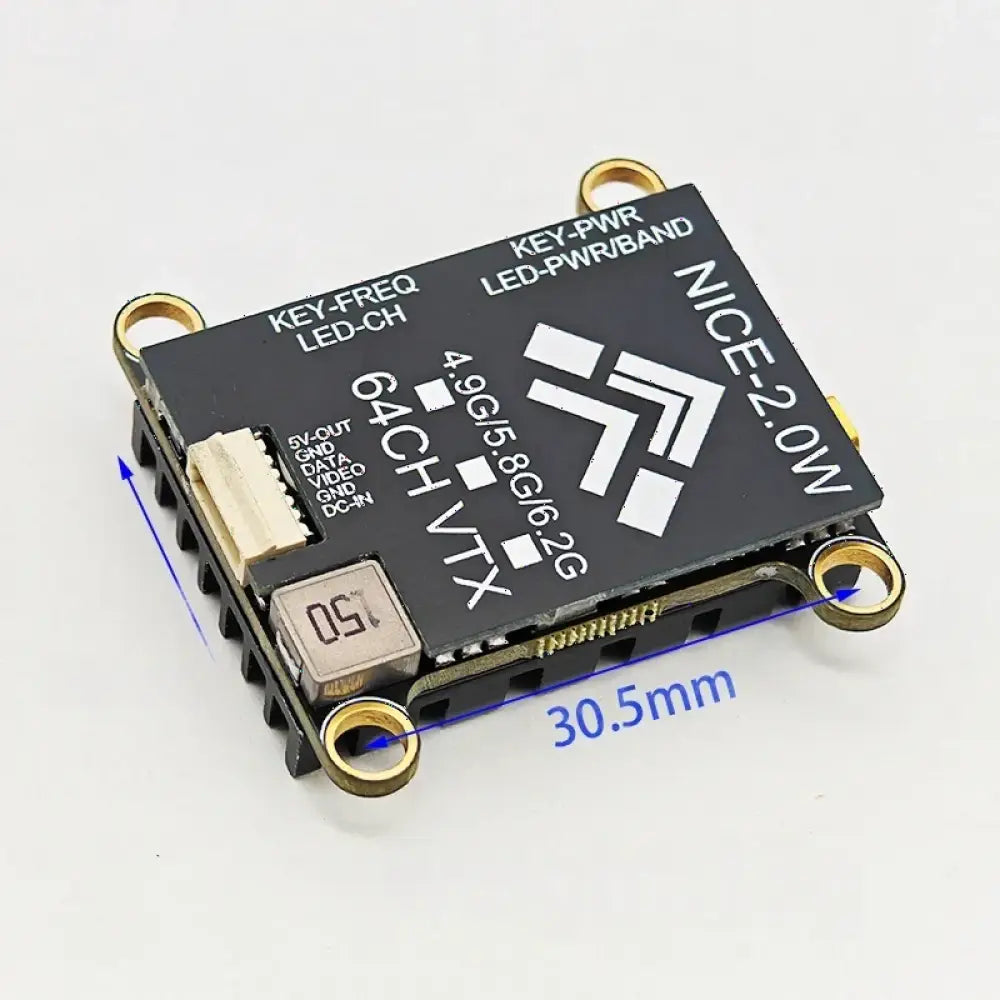

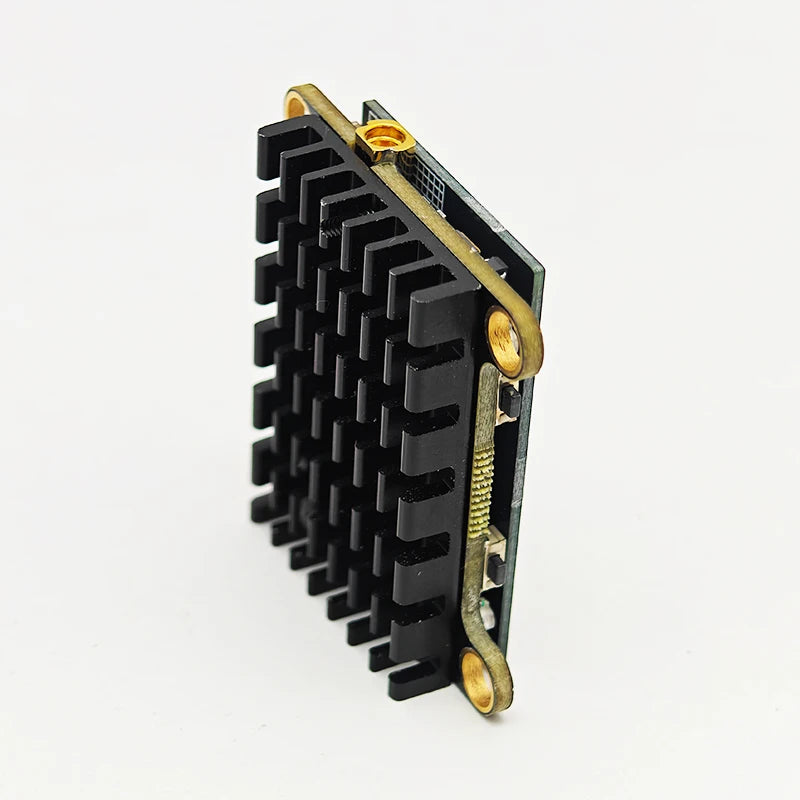

-Size (L*W*T): 36*36*10mm. fixing hole spacing 30.5 * 30.5mm.
-Working voltage: DC7V-36V (2s-8s)
-Working current: 600MA ± 100MA under 12v casing
-Maximum power consumption: 7W
-RF transmit power: greater than 33dBm (22.0 watts)
-64 working channels, pushbutton selectable parameters
-4 power levels, pushbutton selectable parameters
-5.8GHz video transmission transmitter (compatible with PAL and NTSC) Compact structure, small size, high transmission power
-Using large-scale integrated circuits and automotive-grade components, high reliability
Built-in frequency phase-locked loop, low harmonic radiation, high reliability, stability through digital phase-locked loop circuit, no temperature drift phenomenon.
-Supports TBS protocol OSD adjustment parameters.

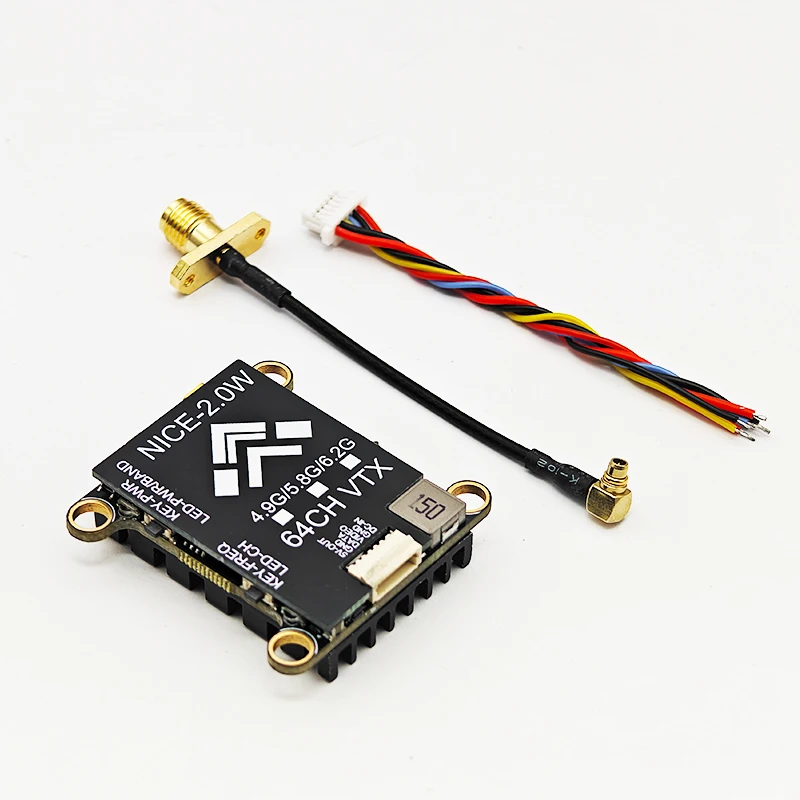

2.How to use the power channel button

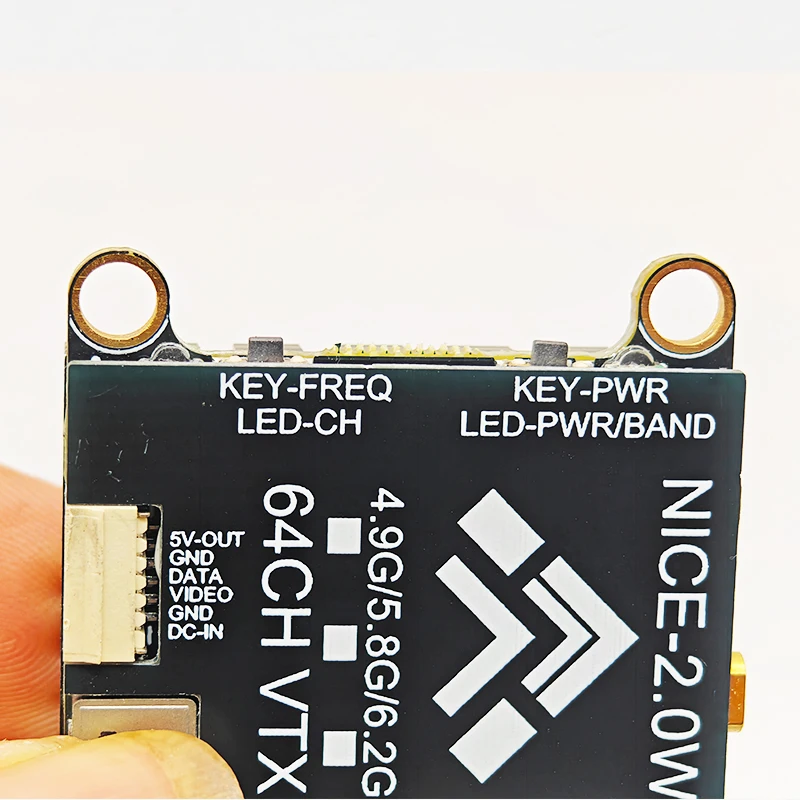

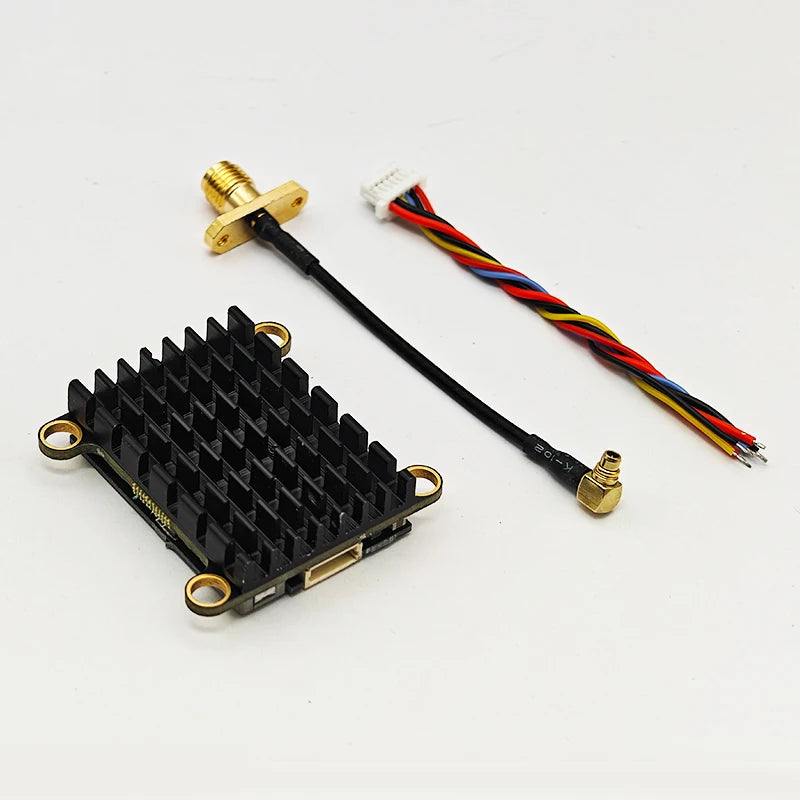

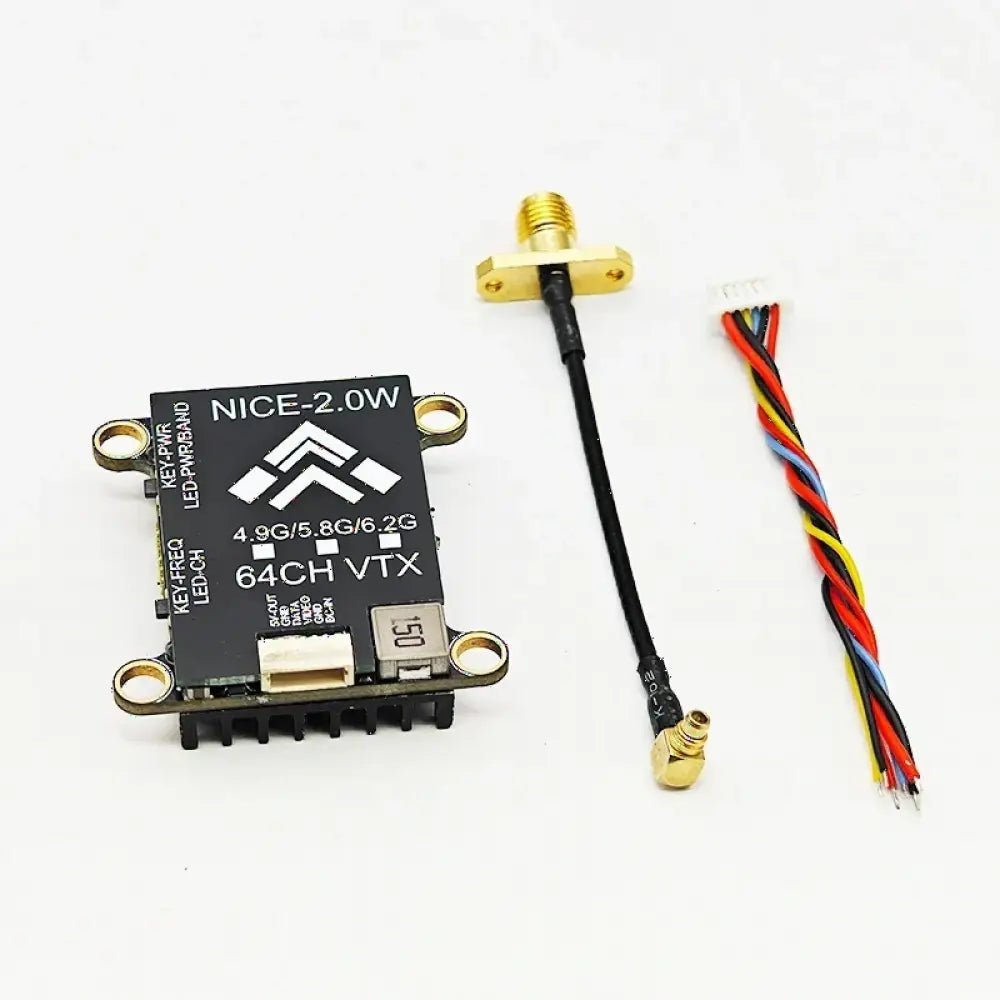

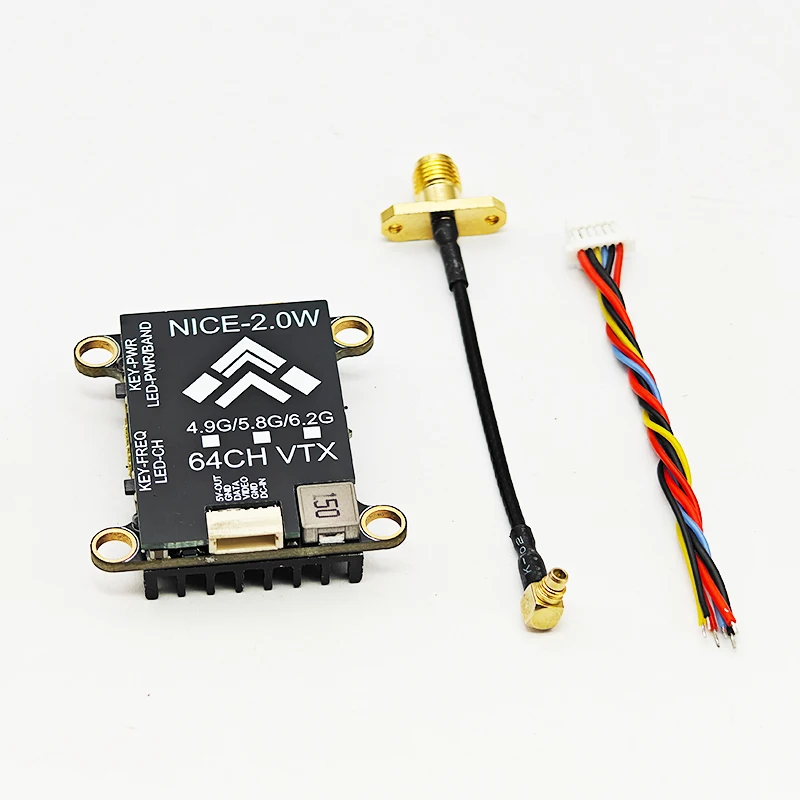

4. Interface definition
1, red thick line DC-IN Graphical transmission power input positive, support range 7-36V.
2, black thick line GND negative power input for graphical transmission.
3, yellow video Video analog signal input
4, white data OSD to adjust the parameter communication data line, support smartaudio protocol
5, black thin line GND graphical transmission output negative pole
6, red thin line 5V-OUT transfer positive pole, maximum output current 350mA. Note: connected to a similar camera with wide voltage of 5-12 can be insufficient camera power supply voltage, no picture.
