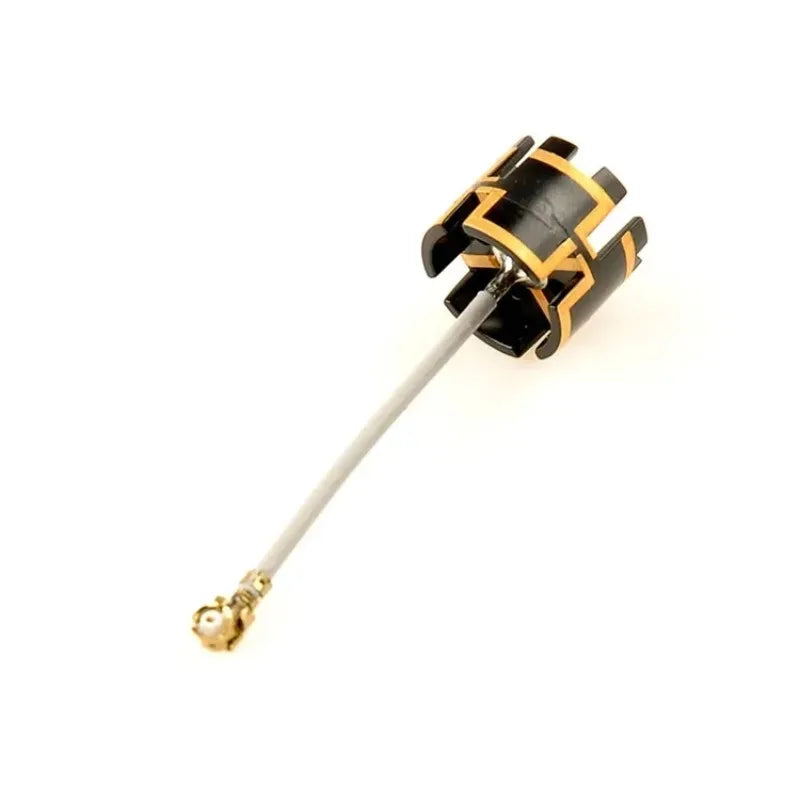

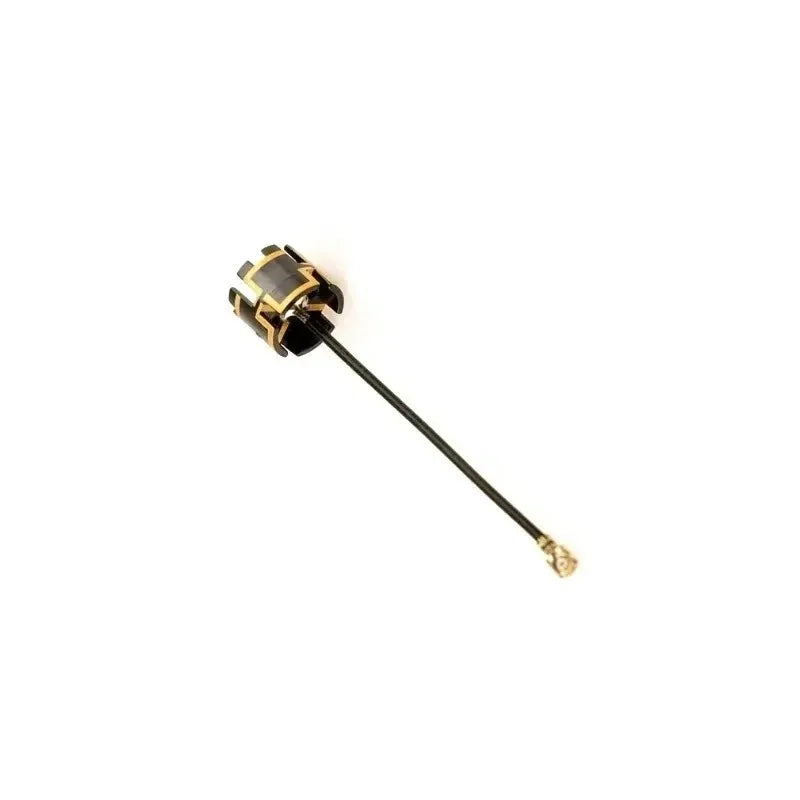

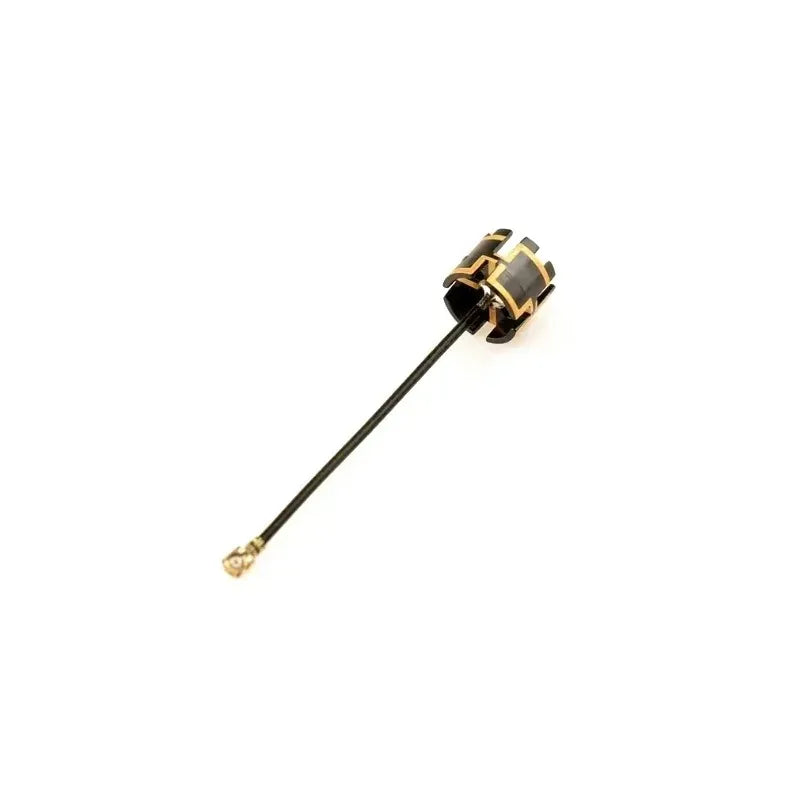

Happymodel 5.8G Crown LDS RHCP/LHCP Antenna for Micro FPV Whoops, for long-range FPV racing drone, RC airplane
SPECIFICATIONS
Four-wheel Drive Attributes: Battery
Brand Name: Happymodel
Choice: yes
Wheelbase: Screws
Is it a charger/adapter: N
Is it a battery/power supply: N
Is it electric: No battery
For Vehicle: TypeHelicopters
Tool Supplies: Grinded
Are batteries included: No
Material: Composite Material
Material: Composite Material
Brand Name: NONE
Model Number: Happymodel 5.8G Crown LDS Antenna
Origin: Mainland China
Origin: CN (Origin)
Technical parameters: Value 3
RC Parts & Accs: Antennas
Upgrade Parts/Accessories: Gear
For Vehicle Type: Airplanes
Highly concerning chemical: None
Remote Control Peripherals/Devices: RECEIVERS
Quantity: 1
Recommend: Age14+y
Use: Vehicles & Remote Control Toys
Use: Vehicles & Remote Control Toys
semi_Choice: yes
Recommended age: 14+y
Happymodel's new Crown LDS 5.8GHz Antenna, featuring an RF design, employs high-precision 3D laser metallization technology to ensure consistent performance for every antenna. Its ultralight design optimizes micro FPV applications. This is a high-performance 5.8GHz antenna specifically designed for whoop pilots.
Specifications:
Frequency Range (MHz): 5500-6000

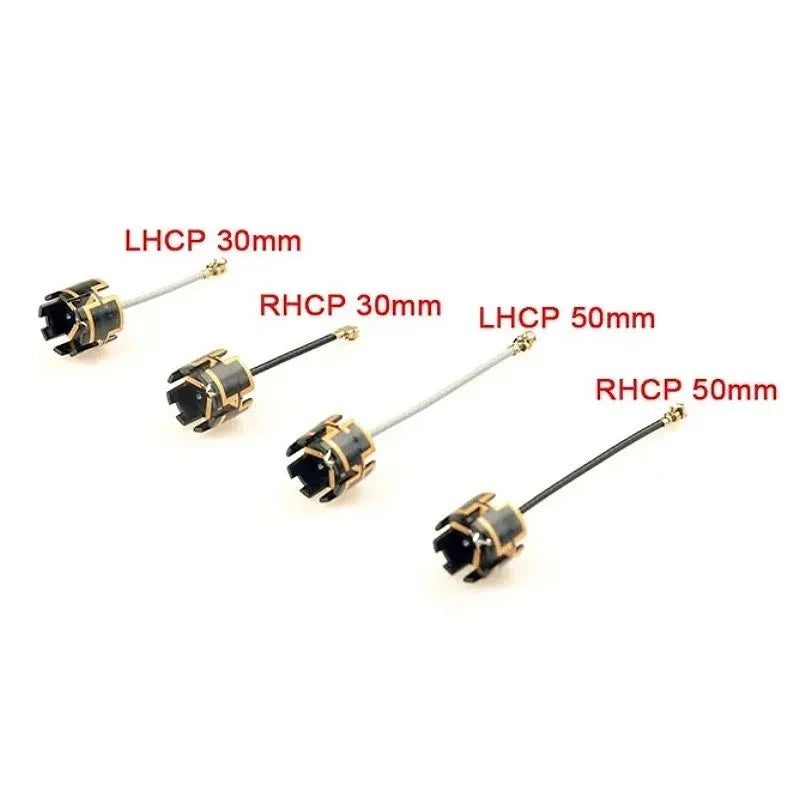

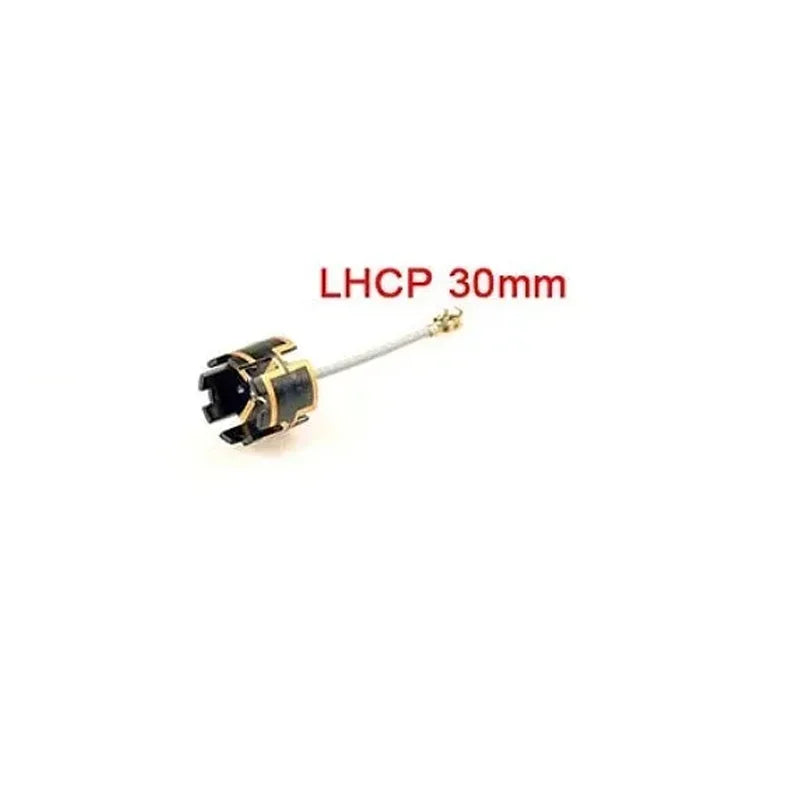

Polarization Options: LHCP (gray color wire) or RHCP (black color wire)
Length Options: 30mm or 50mm
Gain (dBi): 3.5
Input Impedance (Ω): 50
VSWR (5800 MHz): ≤ 1.5
Maximum Input Power (W): 50
Input Connector Type: IPEX/U.FL

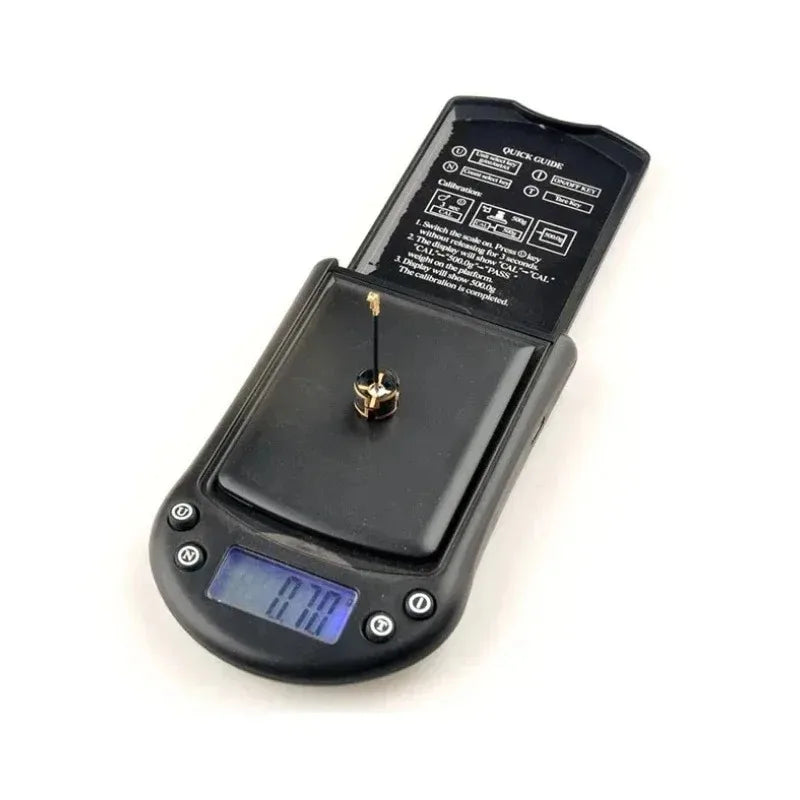

Weight: 30mm 0.68 gram; 50mm 0.78 gram
Package Includes:
1 × Crown LDS antenna
Suitable for indoor brushless drones with 5.8G image transmitter, such as Happymodel Mobula series Whoops.
