SPECIFICATIONS

Brand Name: BETAFPV

Is it a charger/adapter: N

Is it a battery/power supply: N

Is it electric: No battery

Are batteries included: No

Material: Metal

Brand Name: NONE

Origin: CN (Origin)

Highly concerning chemical: None

Recommended age: 14+ years

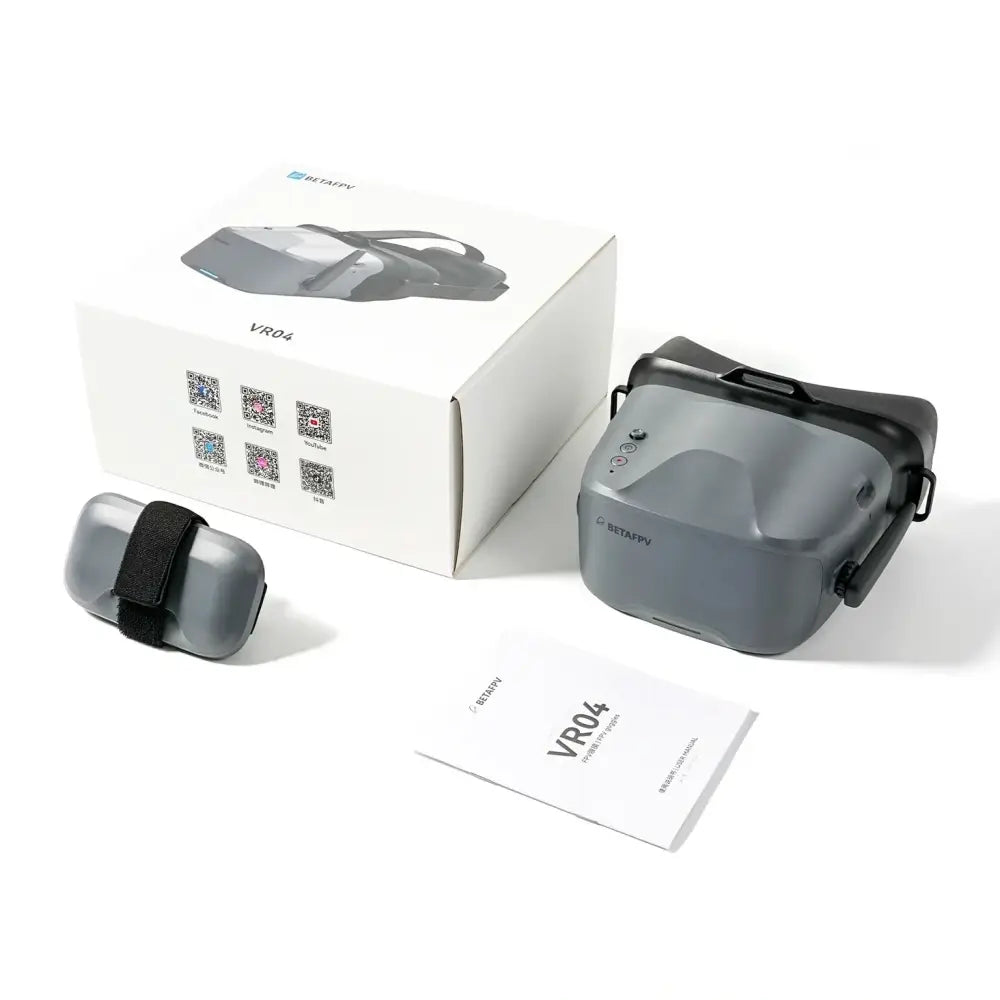

Designed for total immersion and comfort, VR04 HD FPV Goggles feature a glasses-friendly design with ample space, so you never have to remove your eyewear. Boasting contoured face padding and a soft rubber nose bridge, they effectively block out external light while ensuring a secure fit for longer, more focused sessions. The 2600mAh battery delivers up to 3 hours of runtime, while one-button recording enables you to effortlessly capture smooth HD footage directly to a microSD card—saving and reliving your best flights with exceptional clarity. Compatible with the P1 Air Unit, the VR04 HD offers you the flexibility to build your own setup or fly bind-and-fly models.

Bullets

Glasses-Friendly Fit: The spacious interior allows you to comfortably wear your glasses while flying.
Complete Light-Blocking Design: Contoured face padding and a soft nose bridge block glare for total immersion.
P1 Air Unit Compatibility: Build your own whoops with the P1 Air Unit or bind and fly with P1-supported models.
Long-Lasting 2600mAh Battery: Supports up to 3 hours of continuous use and can be easily powered by any 2–6S whoop battery.
One-Button Recording: Instantly capture smooth HD footage directly to the goggles with a single press.

Specifications

Dimensions: 168.8 x 182.1 x 98.5mm
Weight: 400g ±10g (Battery Excluded)
Display Screen: LCD
Screen Size: 4.5 inches
Screen Resolution: 1920*1080
Transmission Range: >400m
Bitrate: Max. 25Mbps
Battery: 2600mAh
Duration: About 3 hours in normal mode
Charging Port: Type-C
Card Slot: MicroSD Card (Not Included), supports FAT32 system, 1TB maximum storage
Recording Resolution: 1080P at 60 frames per second

Diagram

Total Immersion & Comfort

VR04 HD FPV Goggles are engineered for extended wear comfort, featuring a glasses-friendly interior that accommodates most eyewear. The premium PU face padding ensures a secure and comfortable fit, while a soft silicone nose bridge keeps outside light from entering to deliver a completely immersive flight experience.

Power Flexibility

Equipped with twin 2600mAh batteries, the VR04 HD supports up to 3 hours of use on a single charge. For added flexibility, it can also be powered directly by any 2-6S whoop battery—ideal for extended sessions or quick-swap setups.

Record and Replay

The VR04 HD offers exceptional clarity with a 1920×1080 screen resolution, bringing your flights to life with stunning detail. It also supports seamless 1080P 60fps recording—just press the record button to capture HD footage directly to a microSD card that supports up to 1TB of storage. Relive your most thrilling moments anytime, in crisp high definition, with no additional equipment required.

How to Record Video?

Insert a microSD card (max 1T) into the card slot;
Short press the record button to start recording, a red dot will appear;
To stop recording, short press the button again.

Extended Compatibility

The VR04 HD Goggles are compatible with the P1 Air Unit for custom setups, and are ready to fly with whoops like the Meteor75 Pro P1. So whether you're building or flying straight out of the box, immersive HD flight is just a connection away.

Learn More About ArtLynk Protocol

ArtLynk Protocol is a low-latency, long-range communication protocol for drones, offering superior stability and range over traditional analog VTX. The ArtLynk Protocol enables real-time HD video with approximately 60ms glass-to-glass latency, which is crucial for smooth flight control and high-quality FPV (First Person View). Here are the key features you might want to know.

Artosyn Inside & KAP SupportedThe ArtLynk Protocol uses Artosyn's latest AR803X chipset, with core technology support provided by KAP (KAP company provides core technology support or product solution to all FPV companies and ensures compatibility for various FPV products using Artosyn chipsets).
Collaborative & Open CommunityThe ArtLynk Protocol is a collaborative FPV ecosystem that does NOT belong to ONE SINGLE company. Many FPV companies and teams were designing and producing their own products based on ArtLynk Protocol, ensuring broad compatibility and fostering community.

The ArtLynk Protocol supports the VR04 HD Goggles, Aquila20 HD, Meteor75 Pro P1 whoops, and many more, empowering you to customize your own setup or simply bind and fly.
